Lubricating Oil Evaporation Loss Tester Noack Method

AWD-31B Lubricating Oil Evaporation Loss Tester (Noack B method) ASTM D5800

AWD-31B AWD-31B Lubricating Oil Evaporation Loss Tester Noack Method

ASTM D5800



AWD-31B Lubricating Oil Evaporation Loss Tester Noack Method ASTM D5800 is a state-of-the-art Oil Analyzer Machine designed to accurately measure the evaporation loss of lubricating oils and base oils, adhering to the industry standard SH/T0059-2010. This advanced Oil Analyzer Machine is essential for evaluating the high-temperature performance of oil products, providing critical insights into their quality and suitability for various applications.

 ASTM D5800


Scope of Use

The AWD-31B Lubricating Oil Evaporation Loss Tester Noack Method ASTM D5800 is specifically engineered to determine the evaporation loss of lubricating oils and base oils under standardized conditions. AWD-31B Lubricating Oil Evaporation Loss Tester Noack Method ASTM D5800 offers a high degree of automation, streamlining the experimental process and eliminating the need for Wood alloy, thus enhancing safety and efficiency in laboratory settings.




Determination Significance

Evaporation loss is a crucial indicator of an oil product's performance at high temperatures. By accurately measuring this parameter, users can assess the stability and longevity of lubricants, ensuring they meet the required specifications for reliable operation in demanding conditions. This information is vital for industries that rely on high-performance lubricants, such as automotive, aerospace, and industrial manufacturing.









Structural Characteristics

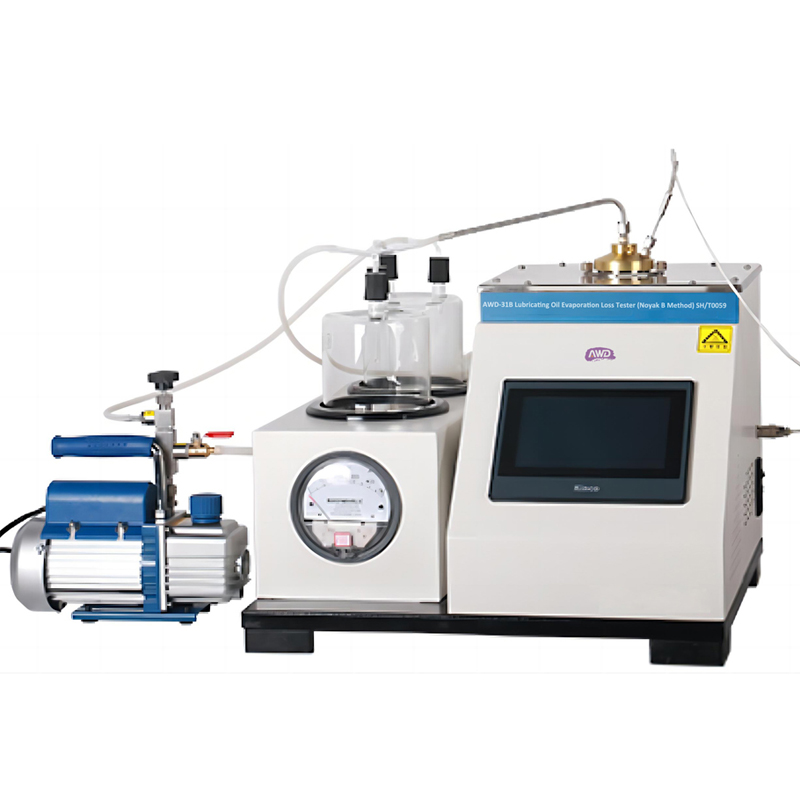

The AWD-31B Lubricating Oil Evaporation Loss Tester Noack Method ASTM D5800 is meticulously designed to provide precise and repeatable measurements. AWD-31B lube oil analyzer-Evaporation Loss Tester's key components include:


Host Unit: The main body of the AWD-31B Lube Oil Analyzer Evaporation Loss Tester ASTM D5800 features a touch control screen, heating element, automatic voltage regulator, differential pressure transmitter, and control circuit system. The heating element of AWD-31B Lube Oil Analyzer Evaporation Loss Tester ASTM D5800 utilizes an aluminum bath with insulation and protective layers, ensuring rapid and even heating.

Evaporating Crucible: This component is designed to hold the sample oil during the evaporation process, providing a stable environment for accurate measurements.

Vacuum Pump: AWD-31B Lube Oil Analyzer Evaporation Loss Tester ASTM D5800 equipped with a coarse adjustable needle valve, the vacuum pump allows for precise control of the vacuum degree, ensuring consistent and reliable results.

Inclined Tube Pressure Gauge: AWD-31B Lube Oil Analyzer ASTM D5800 Evaporation Loss Tester’s gauge monitors the pressure during the experiment, providing real-time feedback for optimal control.

Residual Oil Bottle and Buffer Bottle: These AWD-31B ASTM D5800 Lube Oil Analyzer Evaporation Loss Tester’s components are designed to collect and manage residual oil and gases, maintaining a clean and efficient testing environment.

The control circuit of the AWD-31B Lube Oil Analyzer Evaporation Loss Tester ASTM D5800 is powered by a PLC (Programmable Logic Controller), ensuring exceptional stability and a low failure rate. This AWD-31B Lube Evaporation Loss Device Oil Analyzer Machine’s advanced control system allows for seamless operation and precise regulation of the testing process.



Technical Parameters

  Power Supply: AC220V 10% 50Hz

  Input Power: < 1500W

  Temperature Control Range: room temperature ~ 300℃

  Experimental Temperature: 245.2℃±0.5℃

  Pressure Fluctuation: ≤2Pa

  Temperature curve, pressure curve display

  Automatic dynamic constant voltage, constant current


Advantages

The AWD-31B lube oil analyzer Evaporation Loss Device Oil Analyzer Machine ASTM D5800 stands out for its numerous advantages:

Aesthetic Design: The instrument-AWD-31B Lube Evaporation Loss Device Oil Analyzer Machine ASTM D5800 features a sleek and modern appearance, making AWD-31B lube oil analyzer a valuable addition to any laboratory setting.

User-Friendly Operation: The AWD-31B Lube Evaporation Loss Device Oil Analyzer Machine’s touch control screen provides an intuitive interface, allowing users to easily set parameters and monitor the testing process.

Accurate Measurement: The combination of advanced components and precise control systems of AWD-31B lube oil analyzer ensures highly accurate and repeatable results, meeting the stringent requirements of industry standards.

Efficiency: The automated features and rapid heating capabilities of the AWD-31B Lube Evaporation Loss Device ASTM D5800 Oil Analyzer Machine significantly reduce the time and effort required for evaporation loss testing.



In summary, the AWD-31B Lube Evaporation Loss Device Oil Analyzer Machine ASTM D5800 is a reliable and efficient solution for laboratories and industries that require precise measurement of oil evaporation loss. Its advanced design, user-friendly interface, and high degree of automation make AWD-31B Lube Evaporation Loss Device Oil Analyzer Machine an indispensable tool for evaluating the quality and performance of lubricating oils.
