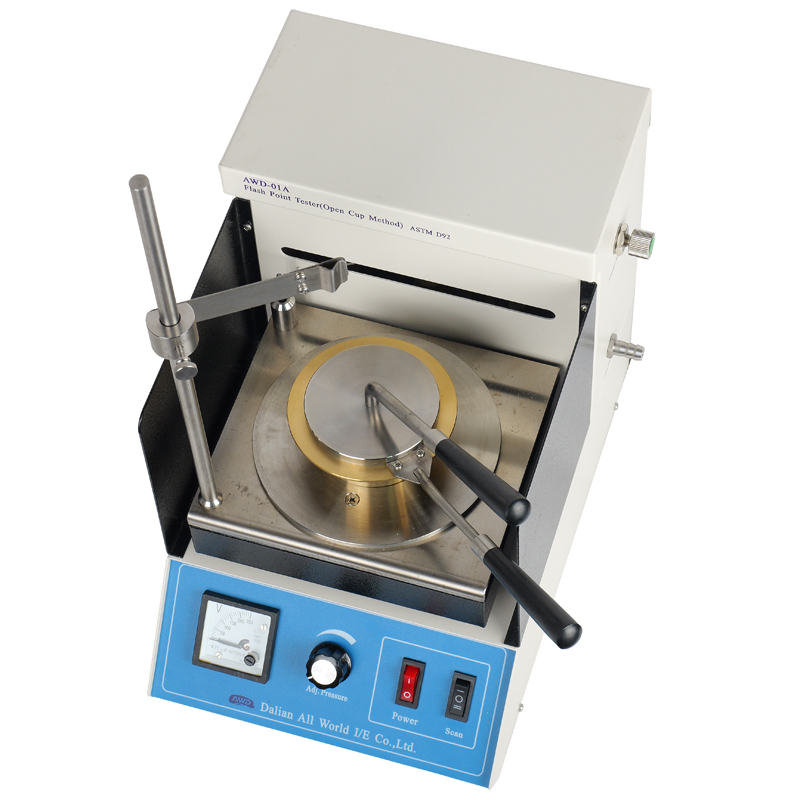

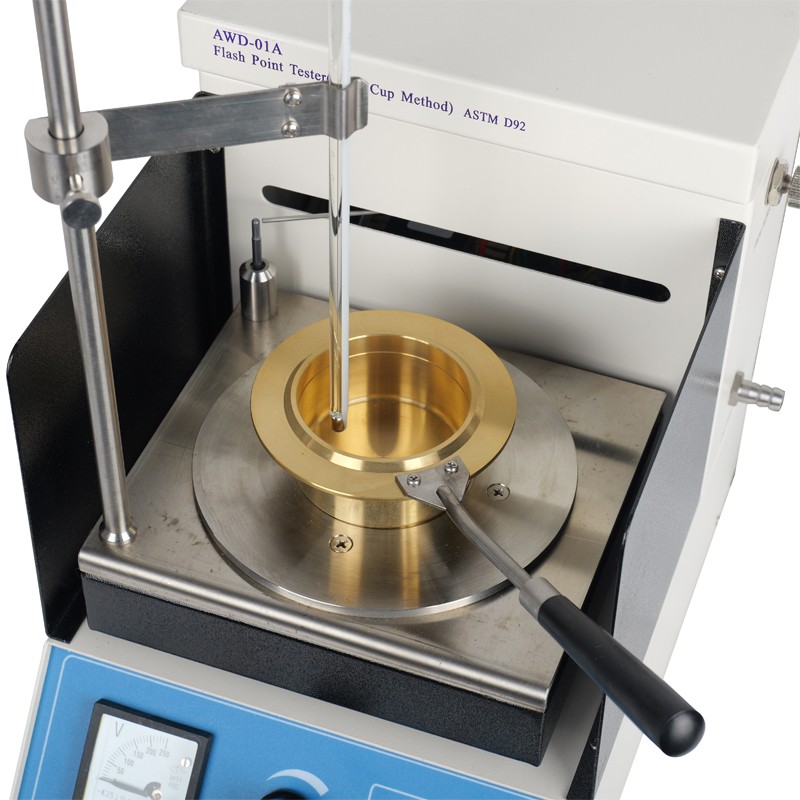

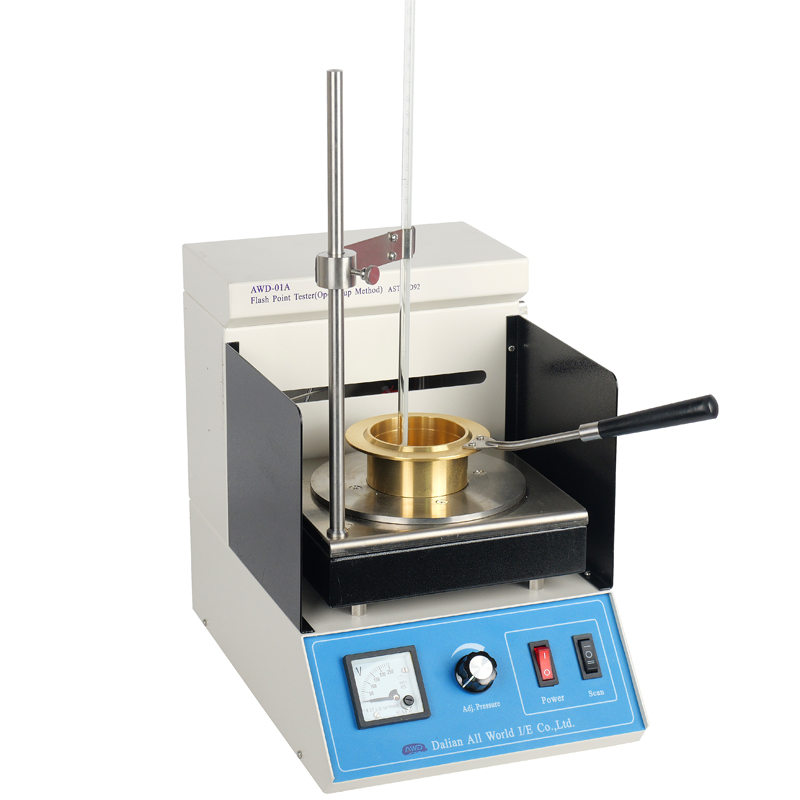

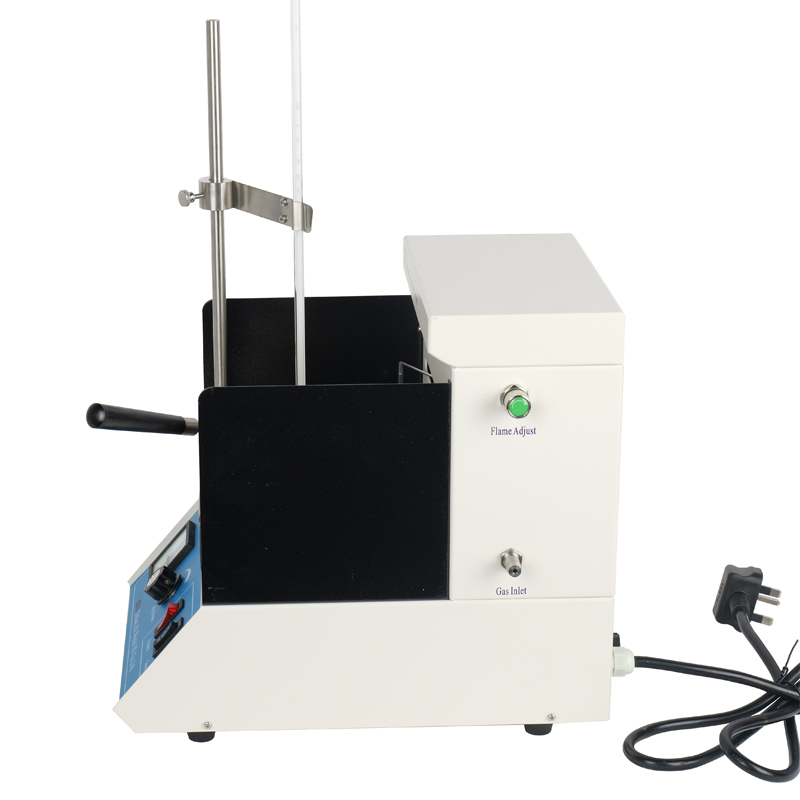

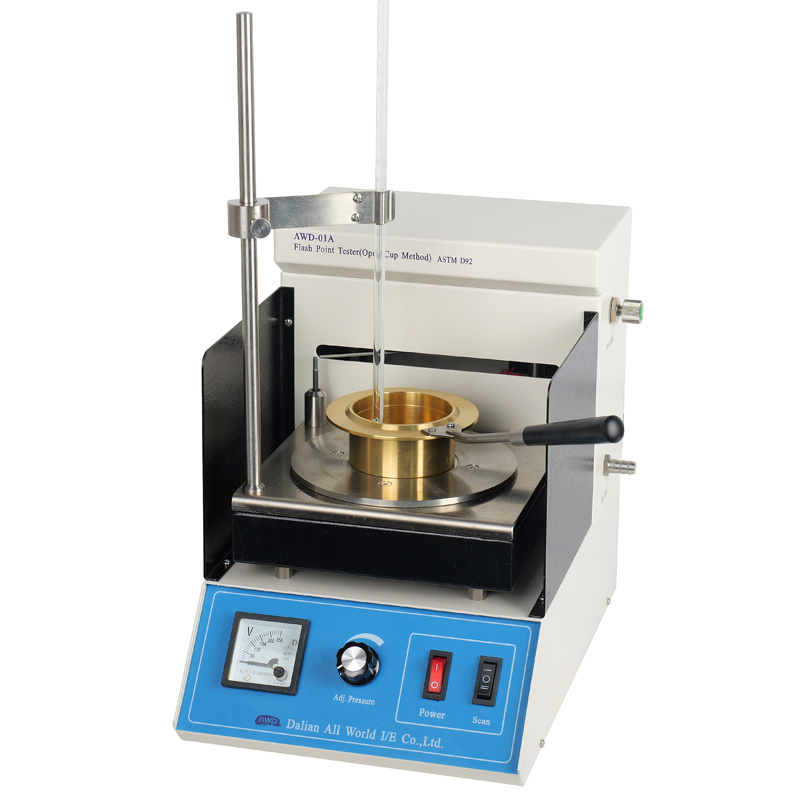

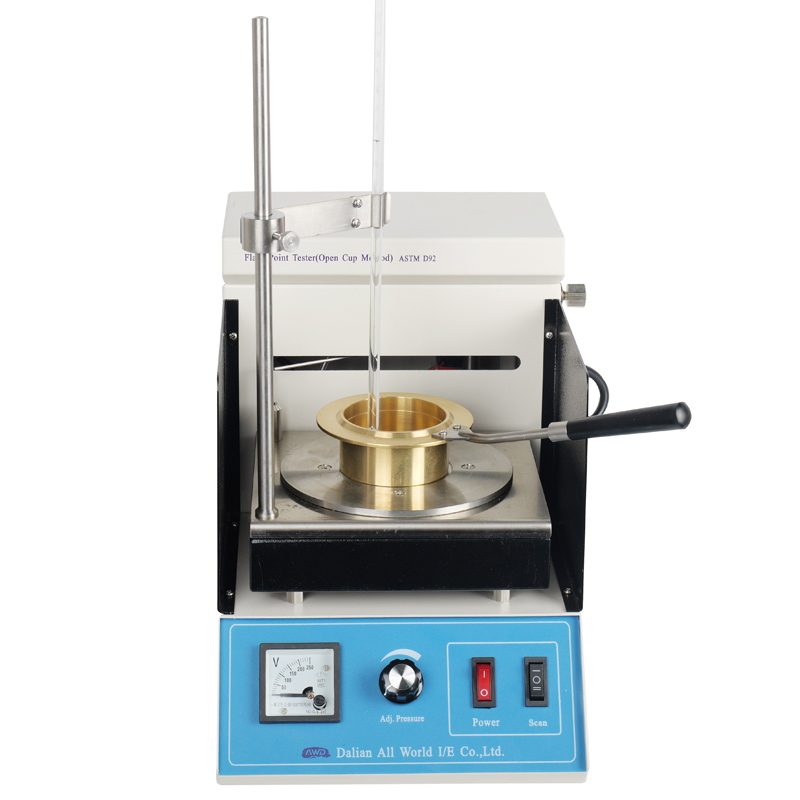

AWD-01A Flash Point Tester
(Cleveland Open Cup Method)
ASTM D92
Open Cup Flash Point Apparatus ASTM D92
Open Cup Flash Point Apparatus ASTM D92
Open Cup Flash Point Apparatus ASTM D92
Open Cup Flash Point Apparatus ASTM D92
Introduction to open cup flash point tester ASTM D92
AWD-01A Cleveland open cup flash point apparatus ASTM D92, equipped with advanced flash testers and ignition devices,open cup flash point tester is designed and manufactured in accordance with GB/T 3536 and ASTM D92 standards, ensuring accurate determination of flash point and ignition for petroleum products.
AWD-01A flash point apparatus ASTM D92, utilizing the Cleveland Open Cup method, is specifically designed for determining the flash point of petroleum products, excluding fuel oil, and is suitable for petroleum products with flash points below 79°C.
AWD-01A Cleveland open cup flash point tester ASTM D92 boasts a beautiful exterior design, generous in size, with a reasonable structure, convenient operation, and delivers accurate measurement results, making it a preferred choice for open cup flash point determination.
Structural Features of Cleveland Open Cup Flash Point Apparatus ASTM D92
AWD-01A Cleveland open Flash Point Tester ASTM D92 is primarily composed of a pilot oil cup, heating plate, oven, lit testing device, thermometer bracket, and wind screens, among others.
The test oil cup is a standard oil cup; the heating plate is made of steel with chrome plating; the furnace uses a heating wire jacket quartz tube and infrared heating, which is more thermally efficient, anti-oxidation, and anti-oil splash compared to traditional direct heating methods. The test pyrophoric ignition device uses a high-voltage ceramic head, widely used in the automobile ignition industry, known for its successful and stable performance compared to other electronic ignition components. The high-voltage ceramic head offers a long service life, is easy to replace, and so on. Sweep within the designated bar trace gases from the gas regulating valve control, stability control the size of the fireball, ensuring smoother testing.
AWD-01A Cleveland open cup flash point tester ASTM D92 uses a solid-state voltage regulator for furnace heating rate adjustment, which is highly integrated, easy to operate, install, and maintain. The output voltage is directly displayed through the voltage meter, making it intuitive and durable.
Technical Parameters of Cleveland Open Cup Flash Point Tester ASTM D92
• Main Technology Parameters
No. | Tech Indicator | Description |
1 | Power | AC220V±10% 50Hz (Can be changed to your country request) |
2 | Power of Main Heating | 0~1200W Adjustable |
3 | Point Source of Ranger | Gas,Butane gas,LPG |
4 | Zoned Sweep Motor | 8-10r/min |
5 | Zoned Sweep Radius | ≥150mm |
6 | Flame Adjustment | 3mm(Minimum) |
7 | Standard | ASTM D92 |
8 | Characteristics | ♦Quartz Tube Furnace ♦Automatic Sweep ♦Antioxidant, Reliable and Durable ♦Easy to Operation ♦Testing Exactly ♦Result Reliable |
Standard Accessories of Cleveland Open Cup Flash Point Tester ASTM D92
• Standard Accessories
No. | Description | Note | Unit | Qty |
1 | Certification & Operation Video |
| Copy | 1 Each |
2 | Main Part |
| Set | 1 |
3 | Thermometer | -6~400℃ | Piece | 1 |
4 | Fire Cover |
| Piece | 1 |
5 | Fuse | 15A | Piece | 2 |
6 | Thermometer Pillar Sand Fixtures |
| Piece | 1 |
7 | Oil Cup |
| Piece | 1 |
• Packing Information
Catalog Number | Dimension (L×W×H) (mm) | Net Weight (Kg) | Gross Weight (Kg) | Materials of Package |
AWD-01A | 460×370×490 | 13 | 19.5 | Treated Wooden Package |
• Ordering Information
Catalog Number | Product Description | Electrical Requirements |
AWD-01A | Cleveland Open Cup Method Flash Point Tester ASTM D92 | AC220V±10% 50HZ (Can be changed to your country requirement) |
