Micro Rapid Flash Point Tester
ASTM D6450 ASTM D93
IP-34 ISO-2719 IP-33 IP-170

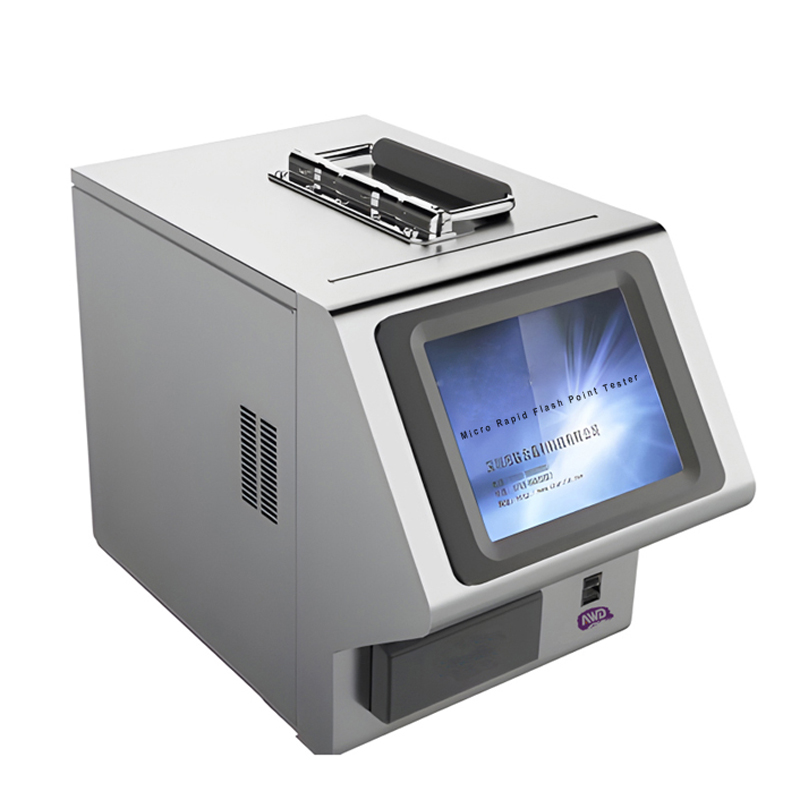

AWD-EFP-1000 Micro Rapid Flash Point Tester ASTM D6450 : The Future of Flash Point Testing
In the world of petroleum and chemical analysis, ensuring safety and efficiency is paramount. The AWD-EFP-1000 Micro Rapid Flash Point Tester ASTM D6450 is designed to meet these needs by providing a portable, automated, and highly accurate solution for determining the flash point of various liquids, including fuel oils, lubricating oils, and solvents. AWD-EFP-1000 Micro Rapid Flash Point Tester is engineered to comply with international standards such as ASTM D6450 and ASTM D7094, ensuring that AWD-EFP-1000 Automated Flash Point Tester ASTM D6450’s results are reliable and consistent with industry requirements.
Innovative Design for Safety and Efficiency
The AWD-EFP-1000 flash and fire point apparatus ASTM D6450 is equipped with a closed cup method for flash point determination, which is widely recognized for its safety and accuracy. This method eliminates the need for open flames, reducing the risk of sample volatilization and evaporation loss. AWD-EFP-1000 flash and fire point apparatus ASTM D6450’s continuous closed cup design, combined with automatic explosion detection and air supply control, ensures that the testing process is both safe and environmentally friendly.
One of the standout features of the AWD-EFP-1000 Automated Flash Point Tester ASTM D6450 is its use of Peltier technology for rapid heating and cooling of samples. This not only speeds up Automated Flash Point Tester ASTM D6450’s testing process but also allows for precise temperature control, making AWD-EFP-1000 Micro Rapid Flash Point Tester ASTM D6450 ideal for high-throughput laboratories. AWD-EFP-1000 Micro Rapid Flash Point Tester ASTM D6450's flexibility is further enhanced by its ability to simulate almost all flash point test methods by adjusting control parameters such as heating rate, air intake, and ignition.
User-Friendly Interface and Advanced Features
The AWD-EFP-1000 Micro Rapid Flash Point Tester ASTM D6450 boasts a large color touchscreen interface based on the Windows operating platform, making AWD-EFP-1000 Automated Flash Point Tester ASTM D6450 easy to navigate and operate. AWD-EFP-1000 Automated Flash Point Tester ASTM D6450 offers real-time display of temperature and pressure curves, automatic detection with atmospheric pressure correction, and customizable flash point determination methods. AWD-EFP-1000 Automated flash and fire point apparatus‘s features ensure that users can tailor the testing process to their specific needs while maintaining high levels of accuracy and reliability.
For added convenience, the AWD-EFP-1000 Automated Flash Point Tester ASTM D6450 includes user permission settings and hierarchical management functions for both standard and advanced users. This allows for efficient data management and ensures that only authorized personnel can access and modify critical settings. AWD-EFP-1000 Automated Flash Point Tester ASTM D6450 is also compatible with USB interfaces and printers, and can connect to various networks, computers, and LIMS systems via LAN.
Wide Application Range
The versatility of the AWD-EFP-1000 Automated Flash Point Tester ASTM D6450 makes it suitable for a wide range of applications. AWD-EFP-1000 flash and fire point apparatus ASTM D6450 is commonly used in petroleum laboratories for quality control and safety assessment, as well as in research and development settings.The AWD-EFP-1000 flash and fire point apparatus ASTM D6450's ability to handle samples with flash points ranging from 10°C to 250°C makes our flash and fire point apparatus an ideal choice for testing a variety of liquids, including those with low flash points.
In addition to AWD-EFP-1000 flash and fire point apparatus ASTM D6450’s use in the petroleum industry, the AWD-EFP-1000 Automated Flash Point Tester ASTM D6450 is also employed in the testing of chemical dangerous goods, flavors and fragrances, and coatings.AWD-EFP-1000 Automated Flash Point Tester ASTM D6450 ‘s portable design and user-friendly interface make the flash and fire point apparatus‘s suitable for both laboratory and field use, ensuring that accurate flash point testing can be conducted in any setting.
Conclusion
The AWD-EFP-1000 Micro Rapid Flash Point Tester ASTM D6450 represents the next generation of flash point testing instruments. Its combination of advanced technology, user-friendly design, and compliance with international standards such as ASTM D6450 makes it a reliable and efficient solution for laboratories and industries dealing with flammable liquids. Whether you are conducting routine quality control tests or performing complex research, the AWD-EFP-1000 Micro Rapid Flash Point Tester ASTM D6450 is designed to meet your needs with precision and ease.
For more information on how the AWD-EFP-1000 Micro Rapid Flash Point Tester ASTM D6450 can enhance your testing capabilities, please contact us today. We are committed to providing you with the highest level of support and service to ensure that your flash point testing processes are both safe and efficient.
Main Advantages
Advanced continuous closed cup flash point test method, precise and efficient testing.
Small sample size, low test cost, minimal pollution.
Continuous closed cup operation, no open flame, high safety.
Built-in refrigeration module, wide flash point test range, short cooling time.
Pre-set standard test methods, and can be associated with other closed cup methods.
Fully automated detection, automatic atmospheric pressure correction for flash point.
Key components use imported brands, ensuring long-term stable operation.
Provides multiple interfaces, USB, RS232, RJ-45, can connect to printers, convenient for data management.
6.4-inch color touch screen, Chinese operation interface.
Technical Parameters
Standards:
SH/T 0768, SN/T 3077, DL/T 1354, ASTM D6450, GB/T 261,
ASTM D93, IP-34, ISO-2719, GB/T 5208, GB/T 21789, IP-33, IP-170.
Flash Point Measurement Range: 10～400℃ -30-100℃ (with external low-temperature circulating bath)
Test Accuracy ≤±2℃
Sample Loading: 2ml
Detection Time: ≤1.5min
Operating Voltage: AC220V, 50Hz
Total Power: 500W
Operating Temperature: -10℃～50℃
Storage Temperature: -20～50℃
Ignition Method: Electronic ignition
Display: Color dot-matrix LCD, 6.4"
Display Resolution: 640×480
Dimensions: 225×376×306
Weight: 8Kg
