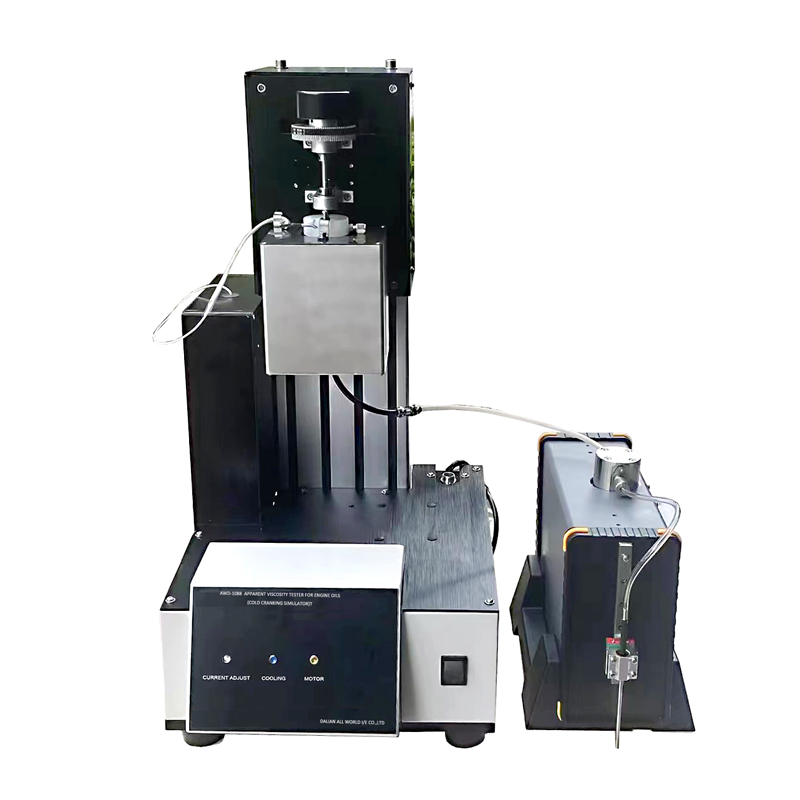

AWD-H1088 Automatic Engine Oil Cold-Cranking Simulator Apparent Viscosity Tester
CCS
ASTM D2602 ASTM D5293
The AWD-H1088 CCS Automatic Engine Oil Apparent Viscosity Tester ASTM D2602 ASTM D5293 is a cutting-edge solution designed to revolutionize the way engine oil viscosity is measured. This advanced instrument -AWD-H1088 Automatic Engine Oil Apparent Viscosity Tester CCS is engineered to meet the highest standards of accuracy and efficiency, adhering to international standards such as ASTM D2602, ASTM D5293, and GB/T6538. AWD-H1088 CCS Automatic Engine Oil Apparent Viscosity Tester ASTM D2602 ASTM D5293 is the ideal tool for laboratories, automotive manufacturers, and oil testing facilities seeking precise and reliable viscosity measurements.
Performance Characteristics
Automated Precision
AWD-H1088 CCS Automatic Engine Oil Apparent Viscosity Tester Cold-Cranking Simulator ASTM D2602 ASTM D5293 stands out for its fully automated testing process.
AWD-H1088 CCS Automatic Engine Oil Apparent Viscosity Tester Cold-Cranking Simulator ASTM D2602 ASTM D5293 automatically detects rotation speed and controls current, significantly reducing human error and ensuring consistent, high-quality results.
AWD-H1088 Automatic Engine Oil Apparent Viscosity Tester CCS Cold-Cranking Simulator ASTM D2602 ASTM D5293 is equipped with an imported, high-precision motor drive that guarantees accurate and reliable performance, even under demanding conditions.
Rapid and Accurate Testing
One of the key features of the AWD-H1088 Automatic Engine Oil Apparent Viscosity Tester CCS Cold-Cranking Simulator ASTM D2602 ASTM D5293 is its ability to quickly test oil viscosity at any temperature, thanks to its advanced semiconductor refrigeration system. This system not only provides rapid cooling but also ensures precise temperature control, with an accuracy that can reach up to 0.02°C. This level of precision is crucial for obtaining accurate viscosity measurements, especially in applications where temperature variations can significantly impact results.
User-Friendly and Efficient
The AWD-H1088 CCS Automatic Engine Oil Apparent Viscosity Tester ASTM D2602 ASTM D5293 is designed with user convenience in mind. It operates on a Windows-based system (compatible with XP and Win7), providing an intuitive interface that simplifies the testing process. AWD-H1088 Automatic Engine Oil Apparent Viscosity Tester ASTM D2602 ASTM D5293 can be easily connected to a printer for direct printing of test results, making data management and reporting seamless and efficient.
Enhanced Testing Capabilities
The AWD-H1088 Automatic Engine Oil Apparent Viscosity Tester CCS ASTM D2602 ASTM D5293 incorporates several innovative features that enhance its testing capabilities. The improved rotor design ensures low torque test status and high repeatability, providing consistent results across multiple tests. The rotary encoder accurately detects rotation speed, further contributing to the instrument's precision.
Calibration and Data Management
The AWD-H1088 CCS Automatic Engine Oil Apparent Viscosity Tester ASTM D2602 ASTM D5293 automatically generates a calibration curve and directly displays the test viscosity results, eliminating the need for manual calculations and reducing the potential for errors. The instrument can store up to 20 standard oil results, which can be easily edited for future reference. Additionally, the AWD-H1088 Automatic Engine Oil Apparent Viscosity Tester CCS ASTM D2602 ASTM D5293 automatically calculates the standard oil calibration deviation, helping users verify the accuracy of their calibration data.
Safety and Convenience
Safety and convenience are also key considerations in the design of the AWD-H1088 Automatic Cold-Cranking Simulator Apparent Viscosity Test Machine ASTM D2602 ASTM D5293. The instrument features automatic shutdown and temperature rise after testing, ensuring that the equipment is safely powered down and ready for the next test. It also automatically recommends the refrigeration temperature, simplifying the setup process for users.
Patented Innovations
The AWD-H1088 Automatic Cold-Cranking Simulator Apparent Viscosity Test Machine ASTM D2602 ASTM D5293 is backed by patented technologies that set it apart from other viscosity testers on the market. These include the patent for a Lubricant Apparent Viscosity Tester Using Semiconductor Refrigeration and the patent for a Lubricant Apparent Viscosity Tester with Automatic Sampling and Automatic Cleaning Structure. These innovations not only enhance the instrument's performance but also provide users with a more efficient and reliable testing experience.
Technical Parameters
| No. | Tech Indicator | Description |
| 1 | Applicable Standard | GB/T6538 ASTM D2602 ASTM D5293 |
| 2 | Refrigeration Method | Semiconductor Refrigeration |
| 3 | Circulation Method | Multifunctional Plastic Steel Pump |
| 4 | Temperature Control Method | Digital Display PID Temperature Controller |
| 5 | Testing Method | Automatic Injection, |
| Automatic Cleaning, | ||
| Automatic Testing | ||
| 6 | Results Processing | Automatic Storage and Printing |
| 7 | Temperature Control Scope | -5℃ -10℃ -15℃ -20℃ |
| -25℃ -30℃ -35℃-40℃ | ||
| 8 | Working Power Supply | AC220 V 50Hz |
| 9 | Engine Power | 1000W |
| 10 | Instrument Dimensions | 780*560*960mm |
| 11 | Net Weight | 40KG |
Applications
The AWD-H1088 Automatic Cold-Cranking Simulator Apparent Viscosity Test Machine ASTM D2602 ASTM D5293 is suitable for a wide range of applications,
including:
Automotive Industry: Testing engine oils to ensure they meet the required viscosity specifications for optimal engine performance and longevity.
Oil Refineries: Quality control and research and development of lubricating oils.
Research Institutions: Conducting studies on the properties and performance of various lubricants.
Industrial Manufacturing: Ensuring the viscosity of lubricants used in machinery and equipment meets the necessary standards for efficient operation.
Conclusion
AWD-H1088 Automatic Cold-Cranking Simulator Apparent Viscosity Test Machine ASTM D2602 ASTM D5293 represents the pinnacle of innovation in oil testing technology. Its combination of advanced features, user-friendly design, and patented innovations make AWD-H1088 CCS Automatic Cold-Cranking Simulator Apparent Viscosity Test Machine ASTM D2602 ASTM D5293 an indispensable tool for anyone involved in the testing and analysis of engine oils. Whether you are a laboratory technician, an automotive engineer, or a researcher, the AWD-H1088 Automatic Cold-Cranking Simulator Apparent Viscosity Test Machine ASTM D2602 ASTM D5293 offers unparalleled precision, efficiency, and reliability, ensuring that your viscosity measurements are always accurate and consistent.
