AWD-06B
Vacuum Distillation Tester at Reduced Pressure ASTM D1160
Precision and Reliability for Petroleum Analysis

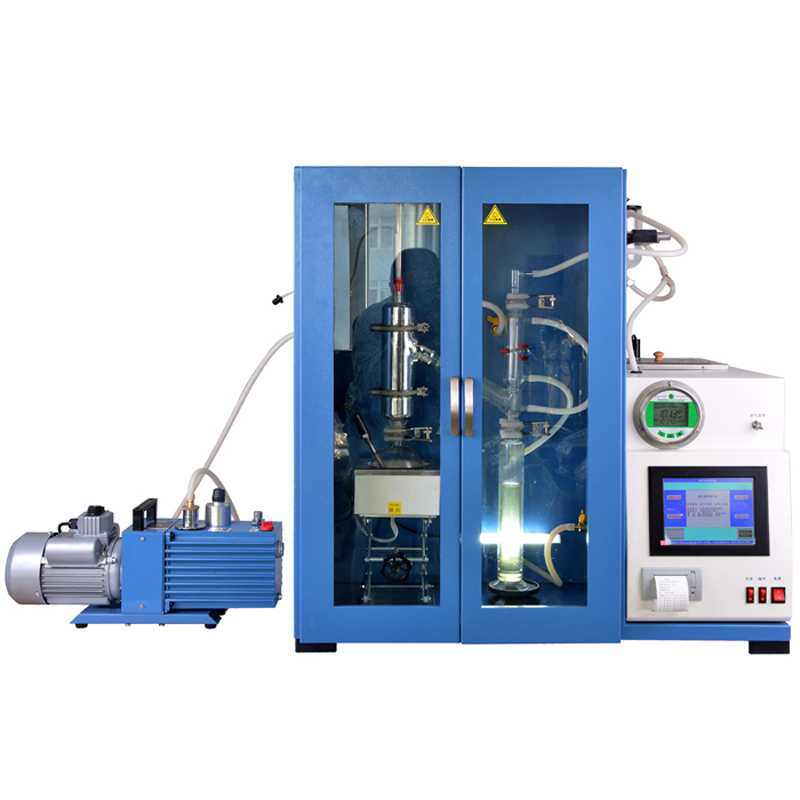

The AWD-06B Vacuum Distillation Tester at Reduced Pressure ASTM D1160 is a state-of-the-art instrument designed to meet the rigorous standards of ASTM D1160. It is specifically engineered for determining the distillation characteristics of petroleum products and fractions that may decompose under atmospheric pressure. This AWD-06B Vacuum Distillation Apparatus is essential for industries such as petrochemicals, defense, power generation, research, and academia, where precise oil analysis is crucial.
1.Key Features of the AWD-06B Vacuum Distillation Tester at Reduced Pressure ASTM D1160
Advanced Display and Operation
The AWD-06B Vacuum Distillation Apparatus features a user-friendly color LCD screen with touchscreen operation, making it easy to navigate and control. AWD-06B Vacuum Distillation Apparatus’s intuitive interface allows users to store, query, and print test records with ease. Additionally, the AWD-06B Vacuum Distillation Apparatus automatically converts vapor temperature to Atmospheric Equivalent Temperature (AET), ensuring accurate and consistent results. With AWD-06B Vacuum Distillation Apparatus’s well-structured design, stable performance, and excellent reproducibility, the AWD-06B Vacuum Distillation Apparatus ensures reliable results every time.
Comprehensive System Components
The AWD-06B Vacuum Distillation Tester at Reduced Pressure ASTM D1160 is composed of several key components that work together to provide precise and efficient distillation analysis:
Vacuum Control System
The Vacuum Distillation Equipment ASTM D1160 includes two large vacuum pressure balance tanks to ensure stable vacuum pressure throughout the distillation process. The vacuum control valve is a high-quality precision manual valve, designed for easy operation, excellent sealing, and fine-tuning capabilities. The Vacuum Distillation Equipment ASTM D1160’s digital display pressure-sensitive vacuum gauge provides direct readings of vacuum values, enhancing accuracy and ease of use.
Circulating Water System
The Vacuum Distillation Equipment ASTM D1160’s circulating water system is essential for cooling the distillation setup. It consists of a constant-temperature water bath, a heater, a circulating pump, and pipes. Vacuum Distillation Equipment ASTM D1160’s system ensures that the distillation process remains within optimal temperature ranges, preventing overheating and maintaining the integrity of the samples.
Cold Trap
The cold trap is a critical component of the Vacuum Distillation Equipment ASTM D1160, utilizing coolant to maintain temperatures below -40°C. Liquid nitrogen can also be used as a coolant for enhanced performance. The cold trap serves two primary functions:
1. It recovers low-boiling components that have been cooled in the condenser during distillation, ensuring that these valuable fractions are not lost.
2. It prevents contamination of the vacuum gauge by low-boiling components, maintaining the accuracy and reliability of the Vacuum Distillation Equipment ASTM D1160.
Glass Distillation Unit
The glass distillation unit is manufactured according to the GB/T 9168-1997 standard, ensuring high-quality construction and compatibility with high-temperature vacuum conditions. When using the unit, all joints should be cleaned and coated with high-temperature vacuum grease to ensure airtight seals and prevent leaks.
Electronic Control Unit (ECU)
The ECU serves as the control core of the Vacuum Distillation Equipment ASTM D1160, integrating a CPU intelligent control system, color LCD touch operating system, test record printing system, and actuators. This Vacuum Distillation Equipment ASTM D1160‘s advanced control unit ensures seamless operation and precise control over the entire distillation process.
2.Benefits of the AWD-06B Vacuum Distillation Tester at Reduced Pressure ASTM D1160
Enhanced Safety and Reliability
The AWD-06B Vacuum Distillation Equipment ASTM D1160 is equipped with a tempered glass explosion-proof door, providing an additional layer of safety during high-vacuum operations. This Vacuum Distillation Equipment ASTM D1160’s feature ensures that the instrument can handle demanding conditions without compromising user safety.
Precision and Efficiency
The combination of a stable vacuum system, efficient cooling, and precise temperature control ensures that the AWD-06B Vacuum Distillation Equipment ASTM D1160 delivers accurate and repeatable results. The automatic conversion of vapor temperature to AET simplifies data analysis and reporting, making our Vacuum Distillation Equipment easier for users to interpret results.
User-Friendly Experience
The touchscreen interface and intuitive controls make the AWD-06B Vacuum Distillation Equipment easy to use, even for those who may not have extensive experience with vacuum distillation. The ability to store, query, and print test records ensures that data management is streamlined and efficient.
Versatility and Compatibility
The AWD-06B Vacuum Distillation Equipment is designed to handle a wide range of petroleum products and fractions, making it a versatile tool for various applications. AWD-06B ASTM D1160 Vacuum Distillation Equipment’s compatibility with high-temperature vacuum conditions and the option to use liquid nitrogen as a coolant provide flexibility for different experimental setups.
3.Technical Parameters
| No. | Tech Indicator | Description |
| 1 | Power | AC220V±10% 50Hz |
| (Can be changed to your country request) | ||
| 2 | Input Power | < 1300W |
| 3 | Environmental Temperature | 5 ~ 35℃ |
| 4 | Humidity | ≤85% |
| 5 | Flask with the Highest Melting Temp Materials | 400℃ |
| 6 | Temperature Range | <450℃ |
| 7 | Temperature Measurement Accuracy | ±0.1℃ |
| 8 | Condenser Maximum Temperature | 80℃ |
| 9 | The Largest Amount of Sample | 200ml |
| 10 | Graduated Cylinder to Collect the Maximum Volume | 200ml |
| 11 | Characteristics | ♦Single-Chip Control |
| ♦Digital Display Distillation Temp. | ||
| ♦Record & Print Automatically | ||
| ♦Result Reliable | ||
| ♦LCD Screen Display | ||
| ♦Touch Screen Operation |
The AWD-06B Vacuum Distillation Tester at Reduced Pressure ASTM D1160 is a cutting-edge solution for laboratories and industries requiring precise distillation analysis of petroleum products. AWD-06B Vacuum Distillation Apparatus ASTM D1160‘s advanced features, user-friendly interface, and reliable performance make it an indispensable tool for ensuring accurate results. Whether you are conducting research, analyzing fuel quality, or ensuring compliance with industry standards, the AWD-06B Vacuum Distillation Apparatus ASTM D1160 offers the precision, efficiency, and safety needed to meet your needs.Conclusion
