AWD-12
Pour Point Tester
ASTM D97
AWD-12 Pour Point Tester: Precision and Efficiency in Petroleum Testing
Introduction
The AWD-12 ASTM D97 Pour Point Tester is a high-performance instrument designed to determine the pour point of petroleum and petroleum products. AWD-12 ASTM D97 Pour Point Tester is manufactured in accordance with the national standard GB/T3535 and the ASTM D97 standard of the American Society for Testing and Materials. The AWD-12 ASTM D97 Pour Point Tester is widely used in laboratories, refineries, and quality control departments to ensure the quality and performance of petroleum products by accurately measuring their pour point—the lowest temperature at which a liquid can flow under specified conditions.
Design and Structure

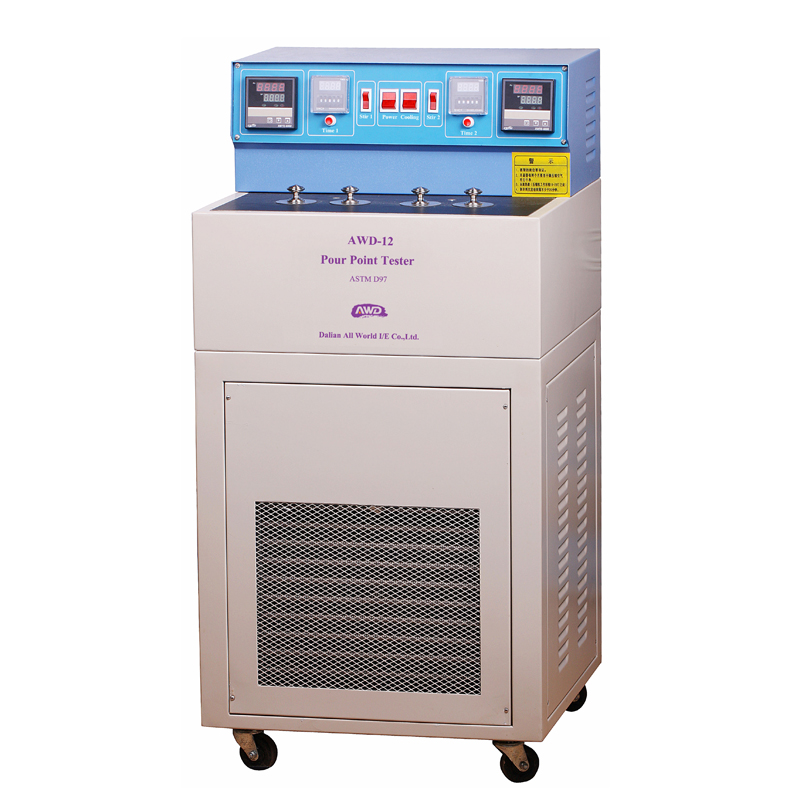

The AWD-12 ASTM D97 Pour Point Tester is a dual-bath, four-hole instrument with an integrated compressor refrigeration system. It is designed to hold four test tubes simultaneously, providing efficient and consistent testing capabilities. AWD-12 ASTM D97 Pour Point Tester’s features an upper and lower row structure, allowing for simultaneous testing of multiple samples in a compact and organized manner.
The refrigeration system of the AWD-12 ASTM D97 Pour Point Tester is fully enclosed and utilizes overlapping compressor technology. This advanced design ensures low energy consumption and a long service life. The AWD-12 ASTM D97 Pour Point Tester’s system includes a compressor, condenser, evaporative condenser, throttling capillary, and evaporator—all assembled using mature refrigeration technology. This ensures reliable performance and precise temperature control during testing.
The AWD-12 ASTM D97 Pour Point Tester’s cold bath temperature control system is equipped with a digital temperature control meter, which intuitively displays the set temperature and actual temperature of the constant-temperature bath. This AWD-12 ASTM D97 Pour Point Tester’s feature allows users to easily adjust the temperature settings and correct any temperature differences, ensuring accurate and consistent test results.
Testing Process
The AWD-12 ASTM D97 Pour Point Tester operates by pre-heating the sample in a test tube and then cooling it at a specified rate. The fluidity of the sample is checked every 3°C, and the lowest temperature at which the sample can still flow is recorded as the pour point. This method ensures that the AWD-12 ASTM D97 Pour Point Tester’s results are accurate and repeatable, providing valuable data for quality control and product analysis.
The AWD-12 Cloud Point Pour Point Tester ASTM D97 ASTM D2500’s dual-bath design allows for simultaneous testing of multiple samples, significantly increasing the efficiency of the testing process. The AWD-12 Cloud Point Pour Point Tester ASTM D97 ASTM D2500’s integrated compressor refrigeration system ensures that the cold bath maintains a consistent temperature throughout the test, even when multiple samples are being processed.
Technical Parameters
| Tech Indicator | ||
| 1 | Power | AC220V±10% 50Hz |
| (Can be changed to your country request) | ||
| 2 | Host Plug Type | 16A, Three Holes |
| 3 | Input Power | ＜1250W |
| 4 | Temperature Sensor | Industrial platinum resistor, |
| its indexing number is Pt100 | ||
| 5 | Temperature Display Mode | LED Digital Display |
| 6 | Range of Controlled Temperature | Room Temperature~-69℃ |
| 7 | Accuracy | ±0.5℃ |
| 8 | Time Display Mode | LED Digital Display |
| 9 | Timing Range | 0 ~ 99.99 Hours |
| 10 | Test Hole | 4 Holes of 2 Baths |
| 11 | Secondary Refrigerant | 95% Ethanol |
| 12 | Bath Volume | 3.2 L x 2 Baths |
| Operating Conditions | ||
| 1 | Work Environment | No dust, No corrosive gas, |
| No strong magnetic field interference | ||
| 2 | Working Power Supply | AC220V±10% 50Hz 16A |
| 3 | Environment Temperature | 10～35℃ |
| 4 | Relative Humidity | ≤85％ |
| Appearance Parameter | ||
| 1 | Overall Dimensions | 470X470X920mm |
| 2 | Main Engine Net Weight | 80Kg |
Features and Benefits
1. **High Precision**: The AWD-12 Cloud Point Pour Point Tester ASTM D97 ASTM D2500 is designed to provide highly accurate results, with a temperature control accuracy of ±0.5°C. This level of precision is essential for ensuring the quality and performance of petroleum products.
2. **Efficient Testing**: The AWD-12 Cloud Point Pour Point Tester ASTM D97 ASTM D2500’s
dual-bath, four-hole design allows for simultaneous testing of multiple samples, significantly increasing the efficiency of the testing process. This is particularly useful in high-throughput environments such as refineries and quality control labs.
3. **User-Friendly Interface**: The AWD-12 Cloud Point Pour Point Tester ASTM D97 ASTM D2500’s digital temperature control meter provides an intuitive interface for setting and monitoring the test temperature. This makes the instrument easy to use and minimizes the potential for operator error.
4. **Reliable Performance**: The AWD-12 Cloud Point Pour Point Tester ASTM D97 ASTM D2500’s fully enclosed refrigeration system and overlapping compressor technology ensure low energy consumption and long service life. This reliability is crucial for maintaining consistent performance over extended periods of use.
5. **Safety and Durability**: The AWD-12 Cloud Point Pour Point Tester ASTM D97 ASTM D2500 is designed with safety in mind, featuring a robust construction and protective measures to prevent damage and ensure safe operation. The use of industrial-grade components ensures durability and longevity.
Applications
The AWD-12 Cloud Point Pour Point Tester ASTM D97 ASTM D2500 is widely used in various industries that require precise measurement of the pour point of petroleum products. Key applications include:
- **Refineries**: Ensuring the quality and consistency of refined petroleum products.
- **Laboratories**: Conducting research and development on new petroleum products and formulations.
- **Quality Control Departments**: Verifying the performance and quality of petroleum products before distribution.
- **Petroleum Product Manufacturers**: Ensuring that their products meet industry standards and specifications.
Conclusion
The AWD-12 Cloud Point Pour Point Tester ASTM D97 ASTM D2500 is a reliable and efficient instrument designed to meet the demanding requirements of petroleum testing. AWD-12 Cloud Point Pour Point Tester ASTM D97 ASTM D2500’s advanced refrigeration system, user-friendly interface, and precise temperature control make it an indispensable tool for laboratories, refineries, and quality control departments. By providing accurate and consistent pour point measurements, the AWD-12 Cloud Point Pour Point Tester ASTM D97 ASTM D2500 ensures that petroleum products meet the highest standards of quality and performance. Whether you are conducting routine quality control tests or advanced research, the AWD-12 Cloud Point Pour Point Tester ASTM D97 ASTM D2500 is designed to deliver the results you need with unparalleled precision and reliability.
