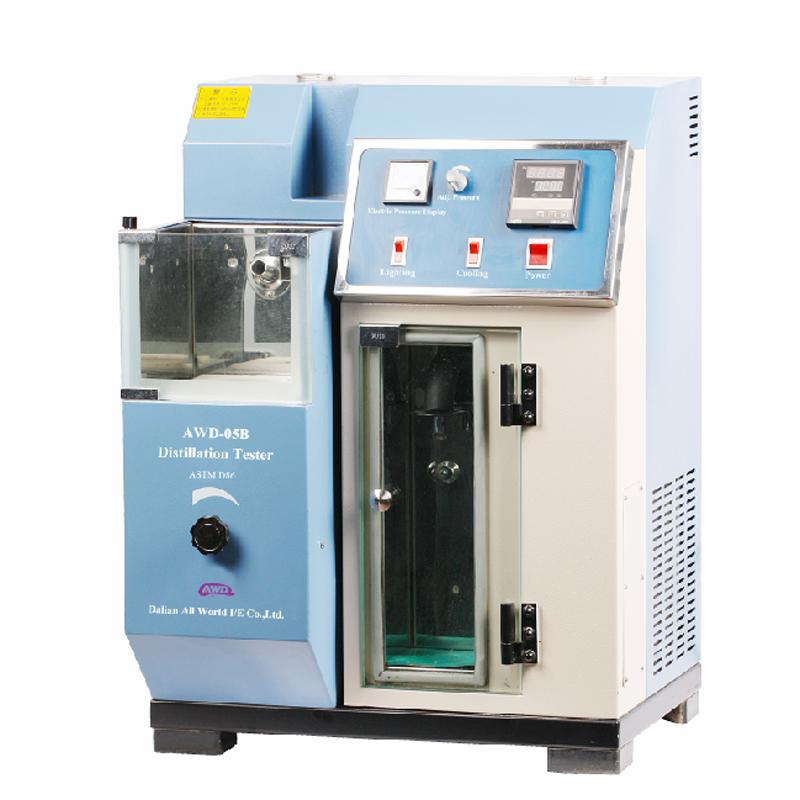

AWD-05B
Distillation Tester
ASTM D86
AWD-05B Distillation Tester ASTM D86 for Petroleum Products: Your Comprehensive Solution for Accurate Distillation Analysis
1.Introduction
The AWD-05B Distillation Tester ASTM D86 is a state-of-the-art instrument meticulously designed and manufactured to meet the highest industry standards, including the national standard GB/T6536 and the widely recognized ASTM D86. AWD-05B Distillation Tester ASTM D86 is specifically engineered for the distillation and determination of a wide range of petroleum products, such as gasoline, jet fuel, petroleum solvents, kerosene, and diesel oil. Whether you are working in a laboratory or an industrial setting, the AWD-05B Distillation Tester ASTM D86 ensures precise and reliable results, making it an indispensable tool for professionals in the petroleum industry.
1. Advanced Heating Rate Control System
AWD-05B Distillation Tester ASTM D86 is composed of a sophisticated heating rate control system and a heating furnace lifting mechanism. At the heart of this system is the solid-state voltage regulator, a critical component that ensures precise control over the heating process. This regulator is designed for easy installation, user-friendly operation, and exceptional reliability. The AWD-05B Distillation Tester ASTM D86’s output voltage is directly displayed on a voltmeter, providing users with an intuitive and easy-to-control interface. AWD-05B Distillation Tester ASTM D86’s feature not only enhances the accuracy of the distillation process but also simplifies the overall user experience.
2. High-Performance Quartz Tube Electric Furnace
One of the standout features of the AWD-05B Distillation Tester ASTM D86 is its heating furnace, which utilizes a quartz tube electric furnace. This innovative design offers several significant advantages. Firstly, it is highly resistant to oil splashes, ensuring that the furnace remains clean and functional even when working with various petroleum products. Secondly, the furnace is designed with safety in mind, providing protection against electric shocks and oxidation. This not only prolongs the lifespan of the device but also ensures a safe working environment for the user. Additionally, AWD-05B Distillation Tester ASTM D86’s quartz tube electric furnace boasts high thermal efficiency, which translates to faster and more efficient distillation processes. The observation window of the heating chamber is designed with an open type, making AWD-05B Distillation Tester ASTM D86 extremely convenient for flask installation, furnace height adjustment, and furnace cooling. AWD-05B Distillation Tester ASTM D86’s thoughtful design consideration significantly enhances the ease of use and overall efficiency of the device.
3. Efficient Receiving System
The receiving system of the AWD-05B ASTM D86 Distillation Test Equipment is another example of its innovative design. It comprises a measuring cylinder, measuring cylinder chamber, and lighting, all of which work together to ensure accurate and reliable results. The measuring cylinder chamber is constructed from high-quality stainless steel and features a glass door, allowing users to easily observe the distillation process. AWD-05B ASTM D86 Distillation Test Equipment’s combination of materials ensures durability, corrosion resistance, and clear visibility, making it easy to monitor the progress of the distillation in real-time. AWD-05B ASTM D86 Distillation Test Equipment’s inclusion of lighting further enhances the visibility, ensuring that even in low-light conditions, users can clearly see the measurements and progress of the distillation.
2.Performance Characteristics
While the performance characteristics of the AWD-05B ASTM D86 Distillation Test Equipment are undoubtedly impressive.
- Heating Rate Control: The AWD-05B ASTM D86 Distillation Test Equipment‘s solid-state voltage regulator allows for precise control of the heating rate, ensuring consistent and accurate distillation results.
- Temperature Range: The AWD-05B ASTM D86 Distillation Test Equipment is capable of operating within a wide temperature range, making it suitable for various types of petroleum products with different boiling points.
- Measuring Cylinder Capacity: AWD-05B ASTM D86 Distillation Test Equipment‘s measuring cylinder is designed to accommodate a range of sample volumes, ensuring versatility and adaptability to different testing requirements.
- Safety Features: The AWD-05B ASTM D86 Distillation Test Equipment includes multiple safety features, such as anti-oil splash protection, anti-electric shock mechanisms, and oxidation resistance, ensuring a safe and reliable operating environment.
- Ease of Use: TheAWD-05B ASTM D86 Distillation Test Equipment‘s intuitive user interface, combined with the open-type observation window and easy-to-read voltmeter, makes the AWD-05B ASTM D86 Distillation Test Equipment user-friendly and accessible to both novice and experienced users.
3.Technical Parameters
| No. | Tech Indicator | Description |
| 1 | Power | AC220V±10% 50Hz |
| (Can be changed to your country request) | ||
| 2 | Distillate Heating Power | 0 ~ 1200W Continuously Adjustable |
| 3 | Furnace Volume Movements Adjustable | 35mm |
| 4 | Flask Branch Aperture Plate | ф50mm and ф37.5mm |
| 5 | Condensate Bath Temperature Range | -5 ~ 80 ℃ |
| 6 | Characteristics | ♦Can be Added Cooling System |
| ♦Quartz Tube Furnace | ||
| ♦White Steel Cooling Tank | ||
| ♦Single Tube Type | ||
| ♦Heating Rate Control System | ||
| ♦Easy to Operation | ||
| ♦Testing Exactly | ||
| ♦Result Reliable |
4.Applications
The versatility of the AWD-05B ASTM D86 Petroleum Distillation Testing Apparatus makes it suitable for a wide range of applications within the petroleum industry. Whether you are conducting research and development, quality control, or routine testing, AWD-05B ASTM D86 Petroleum Distillation Testing Apparatus delivers accurate and reliable results. Some of the key applications include:
- Gasoline and Diesel Oil Analysis: The AWD-05B ASTM D86 Petroleum Distillation Testing Apparatus is ideal for determining the distillation characteristics of gasoline and diesel oil, providing critical data for quality assurance and compliance with industry standards.
- Jet Fuel and Kerosene Testing: For aviation and aerospace industries, the AWD-05B ASTM D86 Petroleum Distillation Testing Apparatus ensures that jet fuel and kerosene meet the stringent quality requirements necessary for safe and efficient operation.
- Petroleum Solvent Analysis: The AWD-05B ASTM D86 Petroleum Distillation Testing Apparatus can also be used to analyze petroleum solvents, providing valuable insights into their distillation properties and ensuring consistency in industrial processes.
5.Conclusion
In conclusion, the AWD-05B ASTM D86 Petroleum Distillation Testing Apparatus is a cutting-edge instrument designed to meet the demanding requirements of the petroleum industry. AWD-05B ASTM D86 Petroleum Distillation Testing Apparatus‘s advanced heating rate control system, high-performance quartz tube electric furnace, and efficient receiving system make it a reliable and efficient tool for distillation and determination of various petroleum products. With AWD-05B ASTM D86 Petroleum Distillation Testing Apparatus‘s user-friendly interface, robust safety features, and versatile applications, the AWD-05B ASTM D86 Petroleum Distillation Testing Apparatus is the perfect choice for laboratories and industrial settings alike. Invest in the AWD-05B ASTM D86 Petroleum Distillation Testing Apparatus today, and experience the difference that precision, reliability, and innovation can make in your distillation processes.
