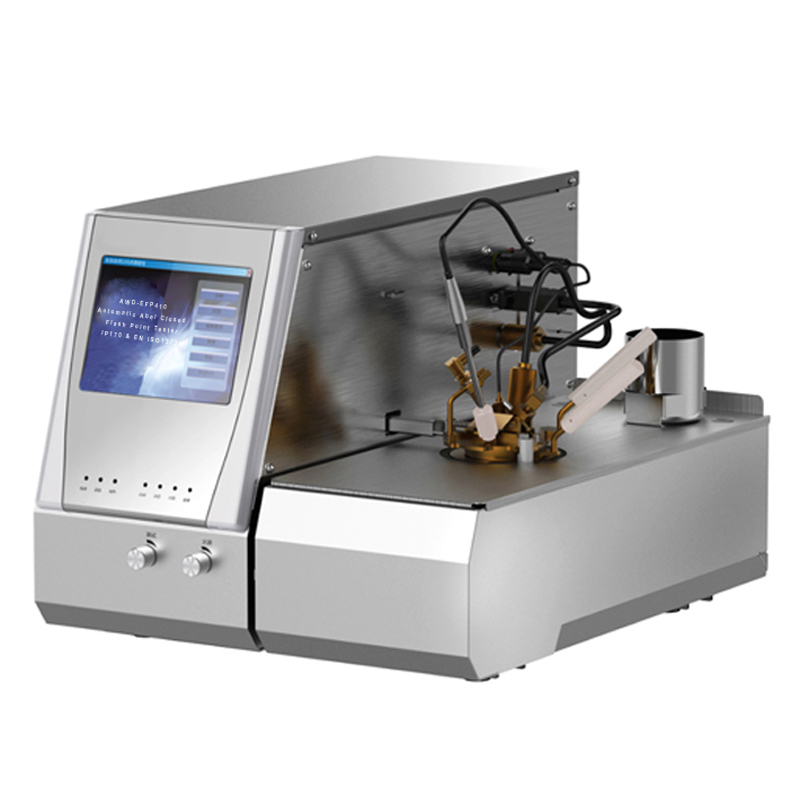

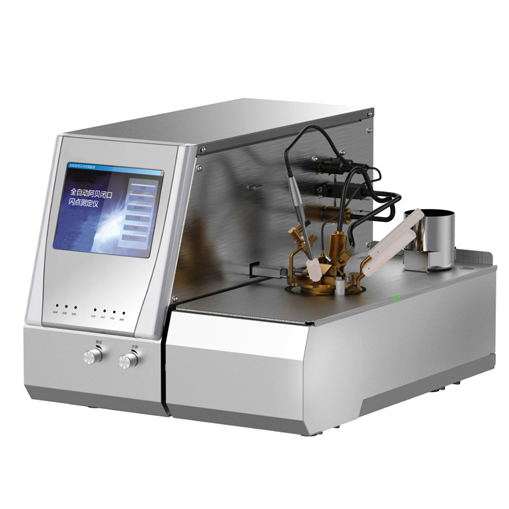

Automatic Tag Closed Cup Flash Point Tester
ASTM D56
AWD-EFP510 Automatic Tag Closed Cup Flash Point Tester ASTM D56 is designed and manufactured according to the requirements specified in the national standard GB/21929 and ASTM D56. It is automatic flash point tester ,suitable for the determination of petroleum products and other liquids at -30℃ ~ 100℃.
Performance Characteristics
1) Dual control system:
AWD-EFP510 Automatic Tag Closed Cup Flash Point Tester ASTM D56 adopts the hardware system of industrial computer plus single chip microcomputer. AWD-EFP510 Automatic Tag Closed Cup Flash Point Tester ASTM D56 ‘s single chip microcomputer is used to realize the control of heating process and the collection of sensor data, which makes the automatic flash point tester's test real-time and the test results more accurate. AWD-EFP510 Automatic Tag Closed Cup Flash Point Tester ASTM D56 ‘s industrial computer as the overall system control makes the instrument more reliable, the automatic flash point tester'sindustrial computer has 256M memory, 4G hard disk, not only running speed block, but also large data storage. AWD-EFP510 Automatic Tag Closed Cup Flash Point Tester ASTM D56 ‘s Windows10IOT operating system is adopted, and AWD-EFP510 Automatic Tag Closed Cup Flash Point Tester ASTM D56 ‘s software uses the full Chinese operation interface (can be changed into English interface), which makes the automatic flash point tester is easy to understand.
2) Multi-interface:
For the convenience of users, AWD-EFP510 Automatic Tag Closed Cup Flash Point Tester ASTM D56 ‘s provides a variety of communication interfaces such as RS-232, USB and RJ-45, which makes our automatic flash point tester can be connected to LIMS system, LAN and Internet; Through the USB interface can not only directly upgrade the system software, but also export the test results data; AWD-EFP510 Automatic Tag Closed Cup Flash Point Tester ASTM D56 ‘s test result report can be printed directly by connecting the laser printer.
3) True color display:
AWD-EFP510 Automatic Tag Closed Cup Flash Point Tester ASTM D56 using 24-bit true color TFT LCD screen and touch screen to make our automatic flash point tester more convenient for users to operate, but also,AWD-EFP510 Automatic Tag Closed Cup Flash Point Tester ASTM D56 equipped with a mouse and disk.
4) Dual ignition mode:
AWD-EFP510 Automatic Tag Closed Cup Flash Point Tester ASTM D56 ‘s ignition mode adopts electronic ignition or gas ignition. Users can choose by themselves. Electronic ignition and gas ignition of our automatic flash point tester have no difference in test results.
5) Gold-plated components:
AWD-EFP510 Automatic Tag Closed Cup Flash Point Tester ASTM D56 ‘s oil cup and cup cover components made of gold-plated, not only more beautiful, but also higher temperature resistance, more convenient maintenance.
6) Separate independent design:
AWD-EFP510 Pensky Marten Flash Point Apparatus ASTM D56’s cup cover assembly, flash point sensor and temperature sensor all adopt separate independent design, which makes our automatic flash point tester more convenient to replace the parts (users plug and play).
7) Import of key components: AWD-EFP510 Pensky Marten Flash Point Apparatus ASTM D56’s temperature sensor adopts the sensor imported from Germany, so that AWD-EFP510 Pensky Marten Flash Point Apparatus ASTM D56’s detection is more reliable and stable, and the data is more accurate. AWD-EFP510 Pensky Marten Flash Point Apparatus ASTM D56’s key mechanical structure of the internal mixing drive adopts the parts imported from Japan.
8) Self-examination and self-diagnosis:
When the AWD-EFP510 Pensky Marten Flash Point Apparatus ASTM D56 is turned on, it will automatically check the flash point sensor, Pt100 oil temperature sensor, electronic igniter, system hot fuse, etc.; At the same time, our automatic flash point tester’s ignition action, stirring arm action, cooling and heating system startup/reset, etc. If there is a fault or abnormal connection, AWD-EFP510 Pensky Marten Flash Point Apparatus ASTM D56 will emit a buzzer alarm and the screen text prompts "××× abnormal, please check whether the connection is normal".
9) AWD-EFP510 Pensky Marten Flash Point Apparatus ASTM D56’s test process is intuitive: the instrument can display the temperature rise rate per minute (number and graph curve form can be converted), the temperature rise rate fully meets the requirements of 1℃/min in the standard.
10) Overheating protection: AWD-EFP510 Pensky Marten Flash Point Apparatus ASTM D56 has overheating protection function. If the pre-safety temperature (safety alarm temperature) is exceeded, the sound and light alarm will be issued but the test can continue; When theautomatic flash point tester's temperature exceeds the safe temperature (test stop temperature) or the absolute safe temperature (400℃), the sound and light alarm will be issued and the test will be stopped. At the same time, the cooling fan will be started for forced cooling to prevent fire and other accidents.
Technical Parameters:
Applicable Standard: GB/ T21929 & ASTM D56
Test Range: -30℃ ~ 100℃ or 0 ~ 100℃
Temperature Detection: Platinum resistance (PT100)
Display Mode: 6.4 "TFT LCD
Heating Rate: 1℃/min or 3℃/min
Display Accuracy: 0.1℃
Ignition Mode: electronic ignition or gas ignition
Ambient Temperature: 10-40 ℃
Relative Humidity: ≤80%
Host Power Consumption: ≤450W
Low Temperature cycle refrigerator: ≤1200W
Power Supply: AC 220V±10% 50Hz
Weight: 25 kg
