ASTM D93
The AWD-02C Automatic Flash Point Tester astm d93 is a state-of-the-art instrument designed to meet the stringent requirements of modern laboratories and industries for determining the flash point of petroleum products and other flammable liquids. AWD-02C Pensky Martens Closed Cup Flash Point Apparatus astm d93 is meticulously engineered to comply with the globally recognized standards of ASTM D93 and GB/T 261-2008, ensuring precise and reliable results.
1. Compliance with International Standards ASTM D93
AWD-02C is specifically designed to adhere to the Pensky-Martens Closed Cup Method as stipulated in ASTM D93 and GB/T 261-2008. This method (astm d93) is widely regarded as the gold standard for flash point testing, providing accurate and repeatable results for a wide range of petroleum products. AWD-02C Pensky Martens Closed Cup Flash Point Apparatus ASTM D93 is capable of determining the lowest temperature at which a sample's vapor will ignite when exposed to a flame under specified conditions.
2. Automated Operation for Enhanced Efficiency
AWD-02C Closed Cup Flash Point Apparatus offers fully automated operation, significantly reducing the potential for human error and increasing efficiency in the laboratory. The AWD-02C Automatic Flash Point Tester astm d93 features an automatic heating system, precise temperature control, and an integrated ignition mechanism, ensuring consistent and reliable test results. The AWD-02C Automatic Flash Point Tester astm d93 not only saves time but also enhances the safety of the testing process.
3. Wide Application Range
The AWD-02C Closed Cup Flash Point Apparatus ASTM D93 is suitable for testing a broad spectrum of petroleum products, including gasoline, diesel, lubricating oils, and biofuels. Its versatility makes AWD-02C Pensky Martens Closed Cup Flash Point Apparatus ASTM D93 an essential tool for quality control in the petroleum industry, as well as for research and development purposes.The AWD-02C Pensky Martens Closed Cup Flash Point Apparatus ASTM D93 can handle samples with flash points ranging from 40°C to 370°C, covering a wide range of industrial applications.
4. Advanced Safety Features
Safety is a paramount consideration in flash point testing, and the AWD-02C Closed Cup Flash Point Apparatus ASTM D93 is equipped with multiple safety features to protect both the operator and the laboratory environment. These include an automatic flame-out system, over-temperature protection, and a sealed test chamber to prevent the escape of flammable vapors.
5. User-Friendly Interface and Data Management
The AWD-02C Closed Cup Flash Point Apparatus ASTM D93 features an intuitive user interface that simplifies operation and data management. The AWD-02C Pensky Martens Apparatus provides clear, easy-to-read displays and can store test results for future reference. Additionally, AWD-02CPensky Martens Closed Cup Flash Point Apparatus ASTM D93 offers connectivity options for data transfer to computers or other devices, facilitating detailed analysis and record-keeping.

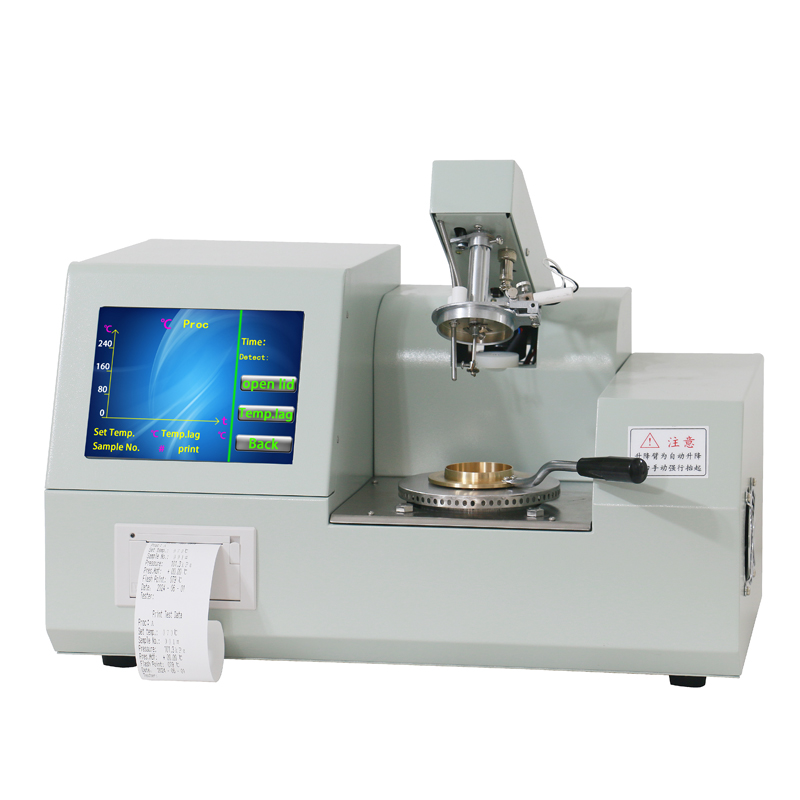

AWD-02C Pensky Martens Closed Cup Flash Point Apparatus astm d93

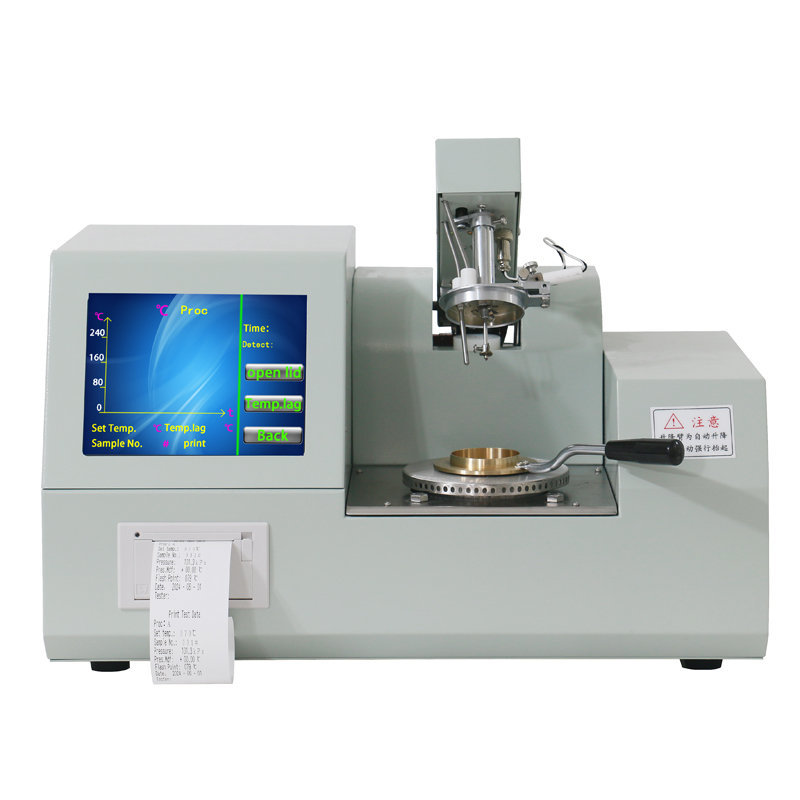

AWD-02C Pensky Martens Closed Cup Flash Point Apparatus astm d93

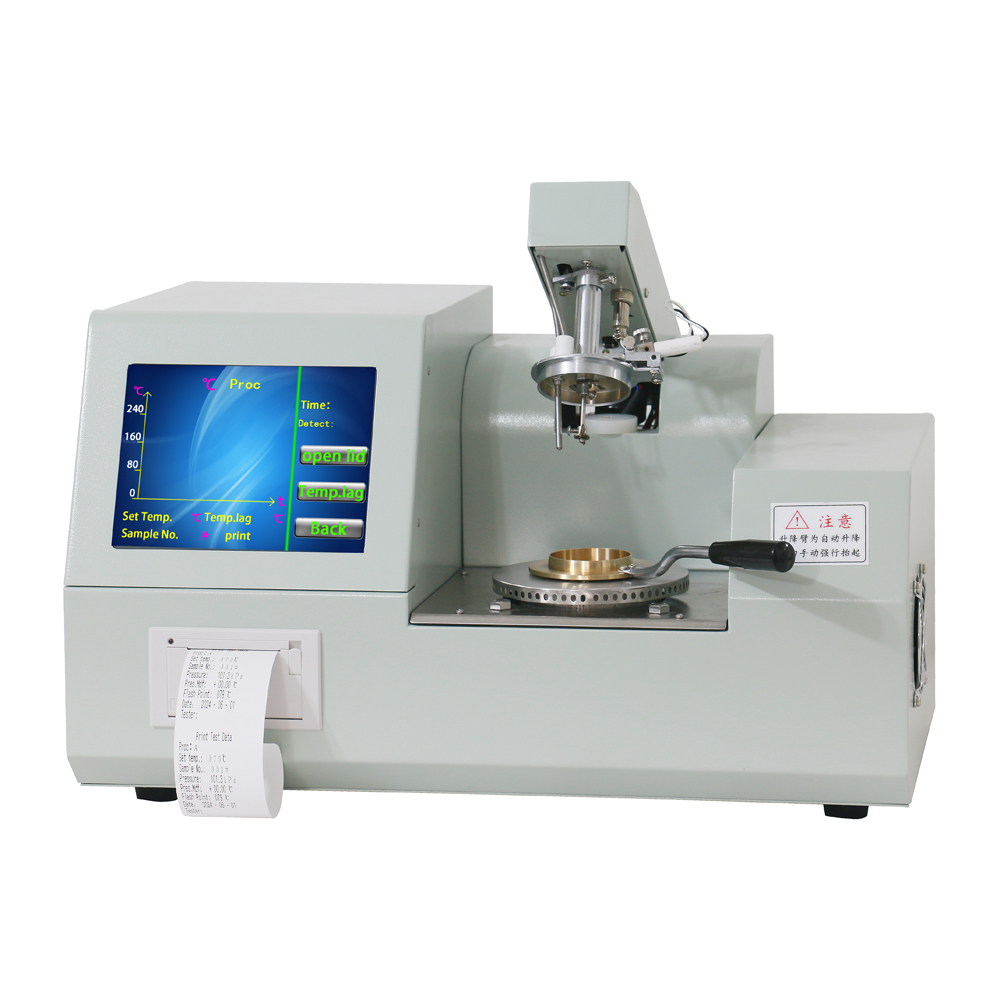

AWD-02C Pensky Martens Closed Cup Flash Point Apparatus astm d93
Functional Features
1. AWD-02C used to determine the closed flash point value of petroleum products.
2. 8-inch pure industrial true color touch screen, English and Chinese interface can be switched at will, Windows CE embedded operating system.
3 . With the instrument self-diagnosis function to check whether there is a fault and display its status.
4. Automatically correct the influence of atmospheric pressure on the test and calculate the correction value.
5. Standard RS485 interface, also can be connected to USB2.0, (optional) can set the instrument parameters and upload data to the computer. Can store up to 120 sets of historical data.
6. The ignition mode is selected manually and automatically.
7. Detection, cover opening, ignition, printing, automatic completion.
8. Using the original imported Renesas microcontroller. PT1000 high precision temperature sensor imported from Germany.
9. With the function of preventing fire overtemperature and automatically stopping work.
10. Built-in high-precision flash point detection sensor, detection time up to milliseconds.
11. Simulation tracking shows the function curve of temperature rise and test time.
Technical Parameters
Power Supply: AC220V 50HZ
Temperature Measurement Range: room temperature ~ 350℃
Repeatability: ≤2℃
Reproducibility: ≤4℃
Resolution: 0.1℃
Accuracy: 0.5%
Base Parameters: temperature rise rate: in line with GB/T261-2008 standard
Ignition Mode: electronic ignition
Ambient Temperature: (10 ~ 40)℃
Relative Humidity: ≤80%
