AWD-05F
Automatic Distillation Tester
ASTM D86
AWD-05F Automatic Distillation Tester ASTM D86: Revolutionizing Petroleum Distillation with Precision and Ease
The AWD-05F Automatic Distillation Tester ASTM D86 is an advanced instrument designed to meet the highest standards of precision and efficiency in distillation testing for petroleum products. Manufactured in accordance with GB/T 6536-2010 and conforming to the ASTM D86 standard, AWD-05F Automatic Distillation Analyzer ASTM D86 is ideal for a wide range of distillate fuels, including natural gasoline, light and middle distillates, automotive spark ignition engine fuel, aviation gasoline, jet fuel, diesel, kerosene, naphtha, and petroleum solvent oils.AWD-05F Automatic Distillation Analyzer ASTM D86 is not suitable for products containing significant residues.

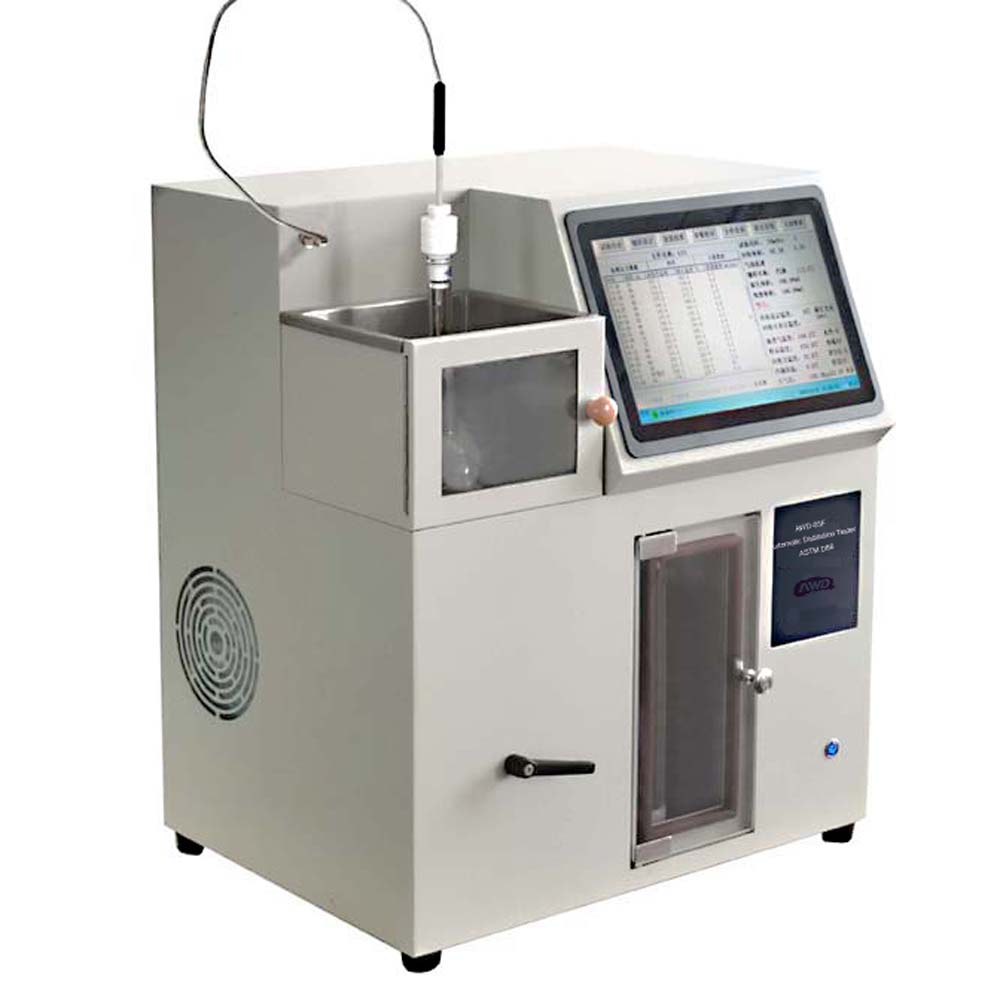

AWD-05F Automatic Distillation Tester ASTM D86
AWD-05F Automatic Distillation Analyzer ASTM D86
1.Key Features of the AWD-05F Automatic Distillation Tester ASTM D86
User-Friendly Interface
The AWD-05F Distillation Meter boasts a built-in industrial computer with a standard 12-inch color LCD touchscreen, offering both Chinese and English language options.AWD-05F Automatic Distillation Tester ASTM D86’s intuitive interface, designed to align with Windows operation habits, simplifies the experimental process. AWD-05F Distillation Meter ASTM D86's system provides various prompts and intelligent pop-up windows, making it easy for users to operate the Distillation Meter without referring to the manual. This ensures accurate results, convenient data recording, and compliance with standard requirements for repeatability and reproducibility.
Compact and Energy-Efficient Design
Utilizing domestic new materials and high-tech innovations, the AWD-05F Distillation Meter ASTM D86 features a streamlined structure compared to similar Distillation Meter on the market. Automatic Distillation Apparatus ASTM D86's design reduces the Distillation Meter's volume by 20% and weight by 60%, while enhancing overall reliability and saving electricity. AWD-05F Distillation Apparatus ASTM D86's compact size and lightweight construction make it an ideal choice for laboratories with space constraints.
Advanced Cooling Technology
The cryogenic system of the AWD-05F Automatic Distillation Analyzer employs semiconductor refrigeration technology, offering rapid cooling speeds and precise temperature control. AWD-05F Automatic Distillation Apparatus ASTM D86's cold bath temperature can be set within the range of 0 to 60±0.5°C, providing flexibility for various experimental conditions.
Automated Experiment Management
Users can set the conditions for experiment termination based on either recovery volume or oil vapor temperature. Once the set conditions are met, the Distillation Meter automatically ends the experiment. This AWD-05F Automatic Distillation Apparatus ASTM D86's feature ensures consistency and reduces human error.
Real-Time Temperature and Pressure Correction
The AWD-05F Automatic Distillation Apparatus ASTM D86 includes a built-in "temperature-pressure automatic correction" function. It automatically adjusts the detected oil distillation temperature to the corresponding temperature at the standard atmospheric pressure of 101.3 kPa. AWD-05F Automatic Distillation Analyzer ASTM D86 also generates distillation and recovery volume curves in real-time, allowing users to monitor the experiment's progress at any time.
Enhanced Safety Features
Safety is a top priority with the AWD-05F Automatic Distillation Analyzer ASTM D86. The system is equipped with a nitrogen interface and features UV automatic flame detection and automatic nitrogen fire extinguishing functions. These AWD-05F Automatic Distillation Apparatus ASTM D86's features ensure the instrument's safety during operation, providing peace of mind for users.
Post-Experiment Convenience

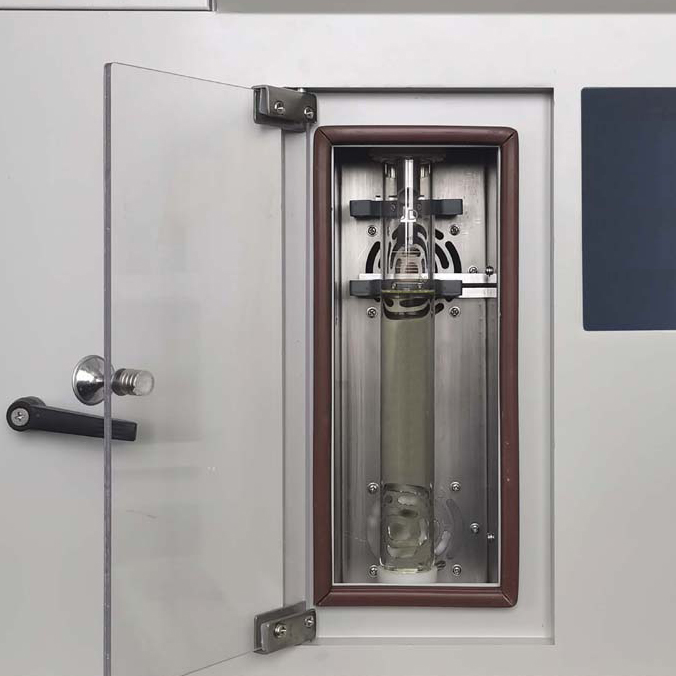

After the experiment concludes, the AWD-05F Distillation Meter ASTM D86 automatically stops heating and activates a fan to cool the flask. It also waits for any residual liquid in the condensing tube to return to the measuring cylinder room. Users can simply follow the on-screen instructions to complete the experiment, making the process hassle-free.
Data Management and Connectivity
The AWD-05F Distillation Tester automatically saves experimental data and generates detailed reports. Users can transfer data using a USB drive or connect a USB printer to print the experiment report directly. Additionally, the AWD-05F Automatic Distillation Tester ASTM D86 is capable of connecting to a Laboratory Information Management System (LIMS), allowing for seamless integration and customization based on user requirements.

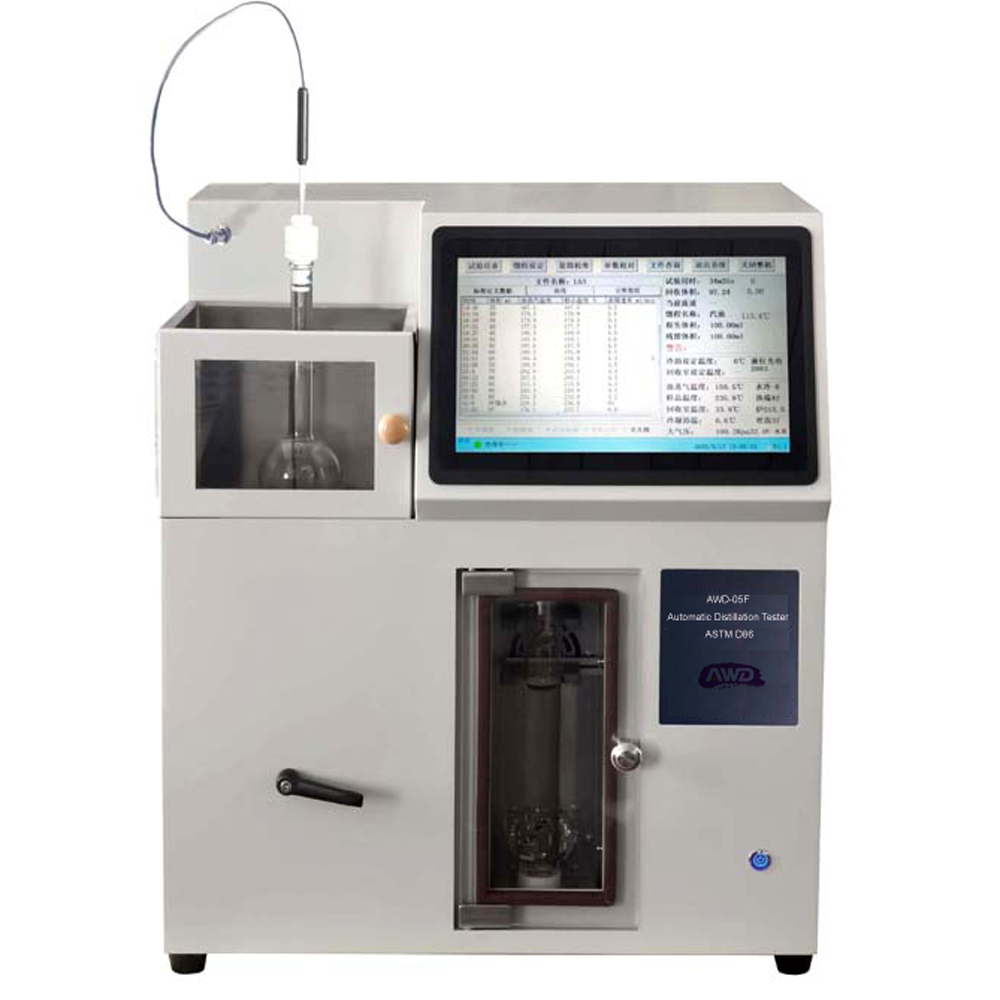

AWD-05F Automatic Distillation Apparatus ASTM D86

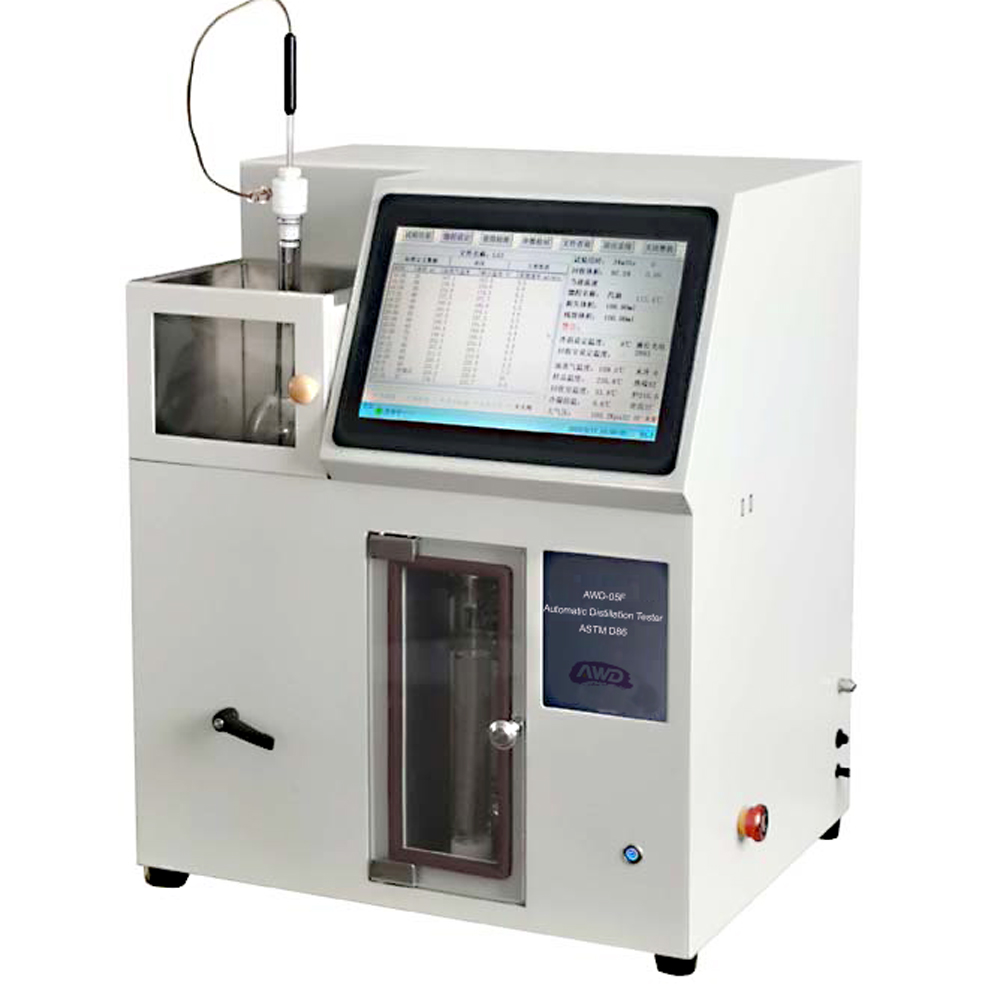

AWD-05F Distillation Meter ASTM D86
Main Parameters of AWD-05F Distillation Analyzer
1.Power: AC（220V±10%）V 10A 50Hz.
2. Power Consumption: <1500W
3. Flask Heating Furnace: 600W
4. Cold Bath Temperature: 0 ∽60 ° C
5. Receiving Room Temperature Control: 13 ° C ∽18 ° C
6. Distilled Liquid Volume: (0 ~ 100)mL± 0.01mL
7. Oil Steam Temperature: Room Temperature ∽400±0.1 ° C
Conclusion of AWD-05F Distillation Analyzer
The AWD-05F Distillation Tester ASTM D86 is a cutting-edge solution for petroleum distillation testing, combining precision, ease of use, and advanced technology. Its user-friendly interface, compact design, and automated features make AWD-05F Distillation Meter ASTM D86 an ideal choice for laboratories seeking efficiency and reliability in their distillation processes. Whether you are testing natural gasoline, aviation fuel, or other petroleum products, the AWD-05F Distillation Analyzer ensures accurate results and a streamlined experimental experience.
