AWD-9168
Automatic Distillation Tester at Reduced Pressure
ASTM D1160
Auto Distillation Equipment astm d1160
Automatic Vacuum Distillation Apparatus
Vacuum Distillation Machine

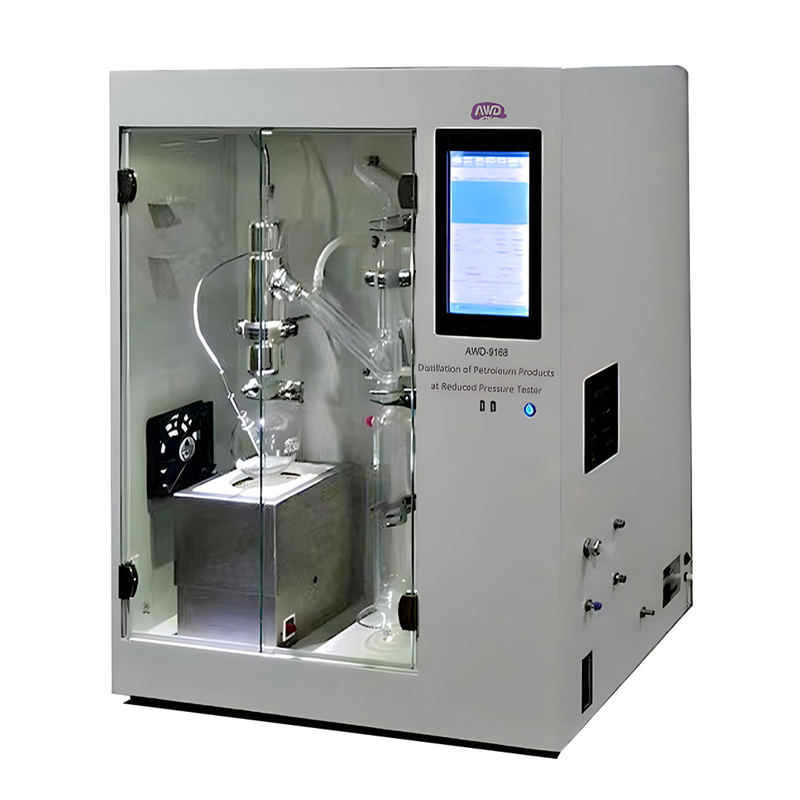

The AWD-9168 Distillation of Petroleum Products at Reduced Pressure Tester ASTM D1160 is a state-of-the-art instrument designed to determine the boiling point range of petroleum products under reduced pressure conditions. AWD-9168 Distillation of Petroleum Products at Reduced Pressure Tester is specifically engineered to meet the requirements of the ASTM D1160 standard, which focuses on the distillation of petroleum products that can be partially or completely vaporized at a maximum liquid temperature of 400°C. The AWD-9168 Distillation of Petroleum Products at Reduced Pressure Tester ASTM D1160 is an essential tool for laboratories and industries involved in the analysis and quality control of petroleum products, providing accurate and efficient distillation results.
Main Parameters
1.Power: AC（220V±10%）V 10A 50Hz
2.Power Consumption: <1800W
3.Oven Consumption: 500W
4.Cold Water Adjustable Range: RT+5℃~80℃
5.Cold Trap Temperature: -40℃
6.Steam Temperature Range: 0~400±0.1℃
7.Sample Temperature Range: 0 ∽400±1℃
8.Vacuum Degree Range: ≤ 2 ∽170mmHg±0.01 mmHg
Advanced Features and User-Friendly Design
The AWD-9168 Distillation of Petroleum Products at Reduced Pressure Tester ASTM D1160 boasts a built-in industrial computer equipped with a 10.1-inch color LCD touch screen. The AWD-9168 Distillation of Petroleum Products at Reduced Pressure Tester ASTM D1160’s graphical user interface (GUI) is designed based on Windows operating principles, ensuring that the operation of AWD-9168 Distillation of Petroleum Products at Reduced Pressure Tester ASTM D1160 is simple, convenient, and easy to learn. Anyone with basic computer skills can quickly master the use of this instrument. The AWD-9168 Distillation of Petroleum Products at Reduced Pressure Tester ASTM D1160’s runtime interface not only displays the current status of the instrument in real-time but also allows users to perform various operations with ease.
One of the standout features of the AWD-9168 Auto Distillation Equipment astm d1160 is its built-in cold trap, which utilizes semiconductor refrigeration technology. This AWD-9168 Auto Distillation Equipment astm d1160’s advanced system can reduce the cold trap temperature to -40°C within 20 to 30 minutes, significantly enhancing the efficiency of the distillation process. The AWD-9168 Auto Distillation Equipment astm d1160’s compact design of the instrument ensures that it occupies minimal space while delivering high-performance results.
The AWD-9168 Auto Distillation Equipment astm d1160 also includes a high-standard "Temperature-Pressure Conversion" function. This AWD-9168 Auto Distillation Equipment astm d1160’s feature is designed to be convenient, simple, and fast, with greatly improved accuracy. It allows users to obtain precise measurements and data, which are crucial for accurate analysis and reporting.
Automated and Safe Operation
Safety and ease of use are paramount in the design of the AWD-9168 Auto Distillation Equipment astm d1160. The AWD-9168 Auto Distillation Equipment astm d1160’s system automatically controls the cooling water temperature within the set temperature range of ±3°C. The water tank is equipped with an overheat protection function, ensuring that the AWD-9168 Auto Distillation Equipment astm d1160 operates safely and efficiently at all times.
The distillation flask of AWD-9168 Automatic Vacuum Distillation Apparatus can be easily adjusted through the touch screen, providing a concise and intuitive user experience. AWD-9168 Automatic Vacuum Distillation Apparatus’s adjustments can be made at any time, allowing users to optimize the distillation process according to their specific requirements.
With our AWD-9168 Automatic Vacuum Distillation Apparatus, the traditional hand-operated lifting platform has been replaced with an electric operation mode. Users can operate the lifting platform with a single key press, and the platform itself features a perfect self-safety protection function. This AWD-9168 Automatic Vacuum Distillation Apparatus’s innovation not only saves time and effort but also enhances the overall safety of the instrument.
Efficient and Convenient Post-Experiment Management
The AWD-9168 ASTM D1160 Automatic Vacuum Distillation Apparatus is equipped with a built-in condensate automatic recovery system. During the experiment, the oil vapor captured by the cold trap will automatically flow into the recovery bottle after liquefaction as the temperature of the cold trap rises post-experiment. This AWD-9168 Automatic Vacuum Distillation Apparatus’s feature makes it convenient for users to collect and measure the recovered substances, streamlining the post-experiment process.
The AWD-9168 Automatic Vacuum Distillation Apparatus’s system also includes a nitrogen interface. Upon completion of the experiment, the AWD-9168 Automatic Vacuum Distillation Apparatus’s system prompts the user to open the nitrogen valve to prevent potential dangers caused by air entering the vacuum system. This safety measure ensures that the AWD-9168 Automatic Vacuum Distillation Apparatus remains stable and secure throughout the entire process.
Simplified and Integrated Design
The AWD-9168 Automatic Vacuum Distillation Apparatus’s features a built-in vacuum pump, which simplifies the overall operation of the instrument. This AWD-9168 Automatic Vacuum Distillation Apparatus’s integrated design allows users to focus on obtaining accurate results without worrying about complex setup procedures.
The experimental data generated by the AWD-9168 Vacuum Distillation Machine ASTM D1160 is automatically saved, and users can easily generate experimental reports. The AWD-9168 Vacuum Distillation Machine ASTM D1160’s data can be transferred to other locations using a USB flash drive, or users can connect to a USB printer to directly print the experimental report. This flexibility ensures that users can manage their data efficiently and share their results with ease.
Enhanced Visibility and Safety
The AWD-9168 Vacuum Distillation Machine ASTM D1160 adopts tempered glass double doors, which provide a clear view of the test process while ensuring safety. This AWD-9168 Vacuum Distillation Machine ASTM D1160’s design allows users to monitor the distillation process closely without compromising the integrity of the experiment or the safety of the operator.
Integration with Laboratory Information Management Systems (LIMS)
The AWD-9168 Vacuum Distillation Machine ASTM D1160 is designed to connect seamlessly with Laboratory Information Management Systems (LIMS). This feature allows users to integrate the instrument into their existing laboratory workflow, facilitating data management and analysis. AWD-9168 Vacuum Distillation Machine ASTM D1160 can also be customized according to specific user requirements, ensuring that it meets the unique needs of different laboratories and industries.
Conclusion
The AWD-9168 Vacuum Distillation Machine ASTM D1160 is a cutting-edge instrument that combines advanced technology with user-friendly design. AWD-9168 Vacuum Distillation Machine ASTM D1160’s ability to accurately determine the boiling point range of petroleum products under reduced pressure conditions makes AWD-9168 Automatic Distillation Tester at Reduced Pressure ASTM D1160 an indispensable tool for laboratories and industries involved in petroleum analysis. With its automated features, safety measures, and efficient post-experiment management, the AWD-9168 Automatic Distillation Tester at Reduced Pressure ASTM D1160 ensures that users can obtain reliable results with minimal effort and maximum safety. Whether you are conducting routine quality control tests or advanced research, the AWD-9168 Automatic Vacuum Distillation Apparatus is designed to meet your needs and exceed your expectations.
