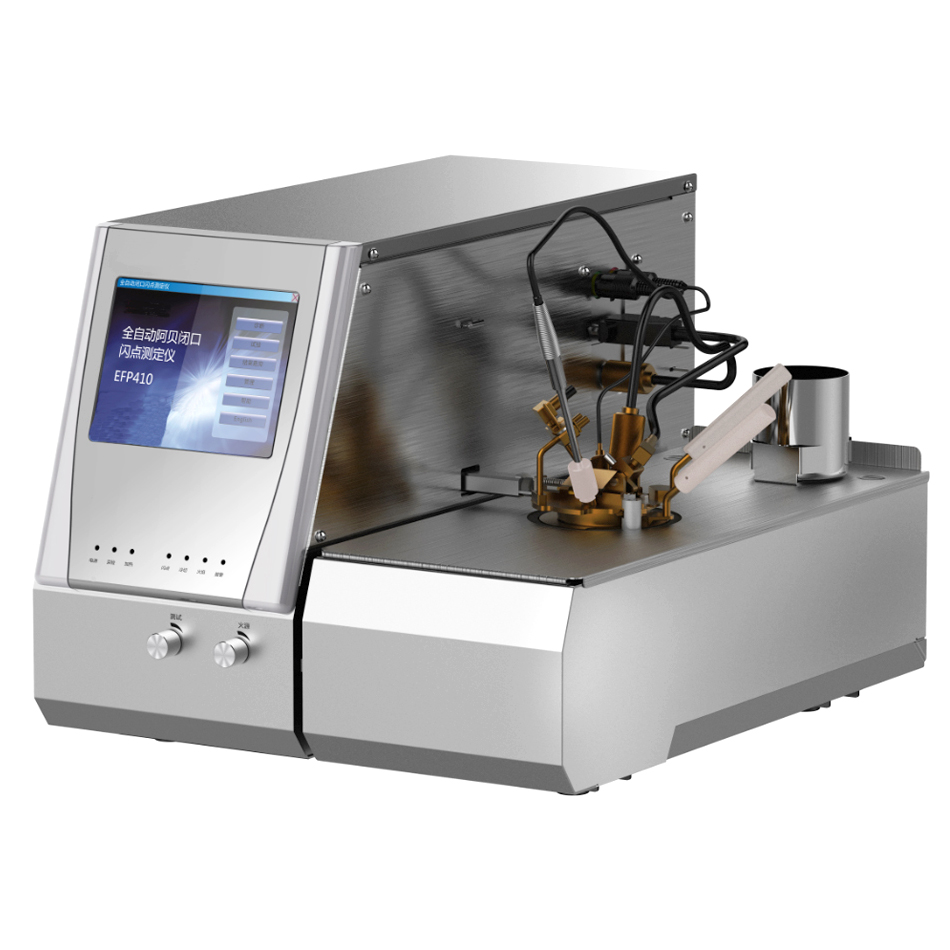

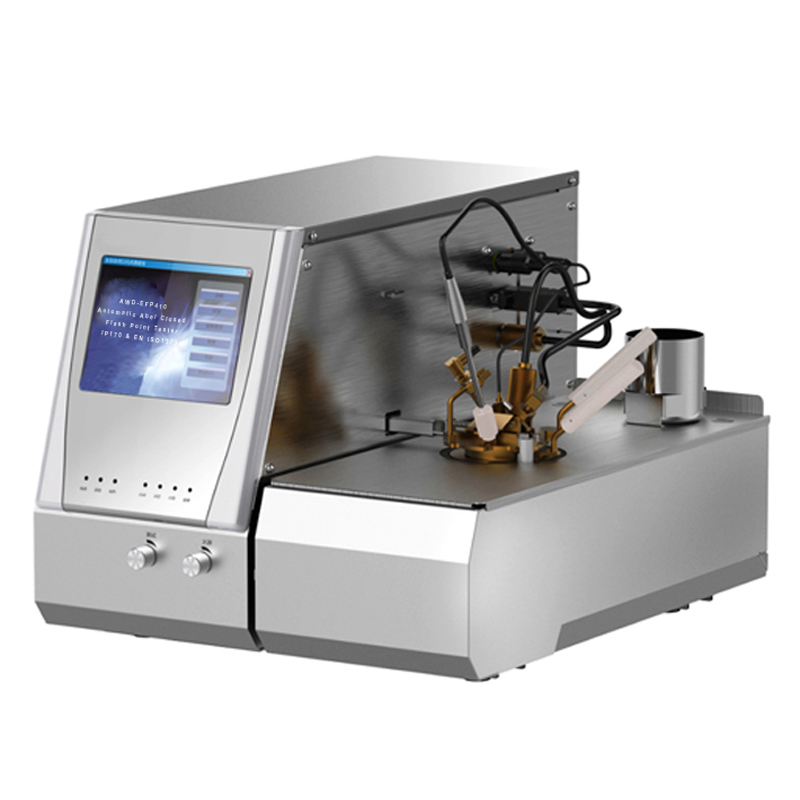

Automatic Abel Closed Flash Point Tester

AWD-EFP410 Automatic Abel Closed Flash Point Tester: Precision and Reliability in Flash Point Determination

The AWD-EFP410 Automatic Abel Closed Flash Point Tester is a state-of-the-art instrument designed to deliver precise and reliable flash point measurements for a wide range of petroleum products and other liquids. Engineered to meet the stringent requirements of international standards such as IP170 and ISO 13736, AWD-EFP410 Automatic Abel Closed Cup Flash Point Tester is specifically tailored for flash point determination within the temperature range of -30°C to 100°C. This makes AWD-EFP410 Automatic Abel Closed Cup Flash Point Tester an ideal solution for laboratories, quality control departments, and research institutions that require accurate and efficient flash point testing.

Advanced Dual Control System for Enhanced Performance

 AWD-EFP410 Automatic Abel Closed Cup Flash Point Tester's features a sophisticated dual control system that combines the robustness of an industrial computer with the precision of a single-chip microcomputer. AWD-EFP410 Automatic Abel Closed Cup Flash Point Tester’s  single-chip microcomputer is responsible for controlling the heating process and collecting sensor data, ensuring real-time testing with high accuracy and reliability. Meanwhile, the industrial computer serves as the overall system controller, equipped with 256MB of memory and a 4GB hard disk. This powerful configuration not only ensures fast operation but also provides ample storage for large datasets. AWD-EFP410 Automatic Abel Closed Cup Flash Point Tester runs on the Windows 10 IoT operating system, with a user-friendly interface available in both Chinese and English, making AWD-EFP410 Automatic Abel Closed Cup Flash Point Tester easy to navigate and operate.

Comprehensive Connectivity and Data Management

 To enhance usability and integration capabilities, AWD-EFP410 Automatic Abel Closed Cup Flash Point Tester offers a variety of communication interfaces, including RS-232, USB, and RJ-45. These interfaces allow seamless connection to Laboratory Information Management Systems (LIMS), LAN networks, and the internet. The USB interface also facilitates direct software upgrades and the export of test results. Additionally, AWD-EFP410 Automatic Abel Closed Cup Flash Point Tester can be connected to a laser printer for direct printing of test result reports, streamlining documentation and record-keeping processes.

Intuitive Operation with True Color Display

 AWD-EFP410 Automatic Abel Closed Cup Flash Point Tester is equipped with a 24-bit true color TFT LCD screen and a touch screen interface, providing users with an intuitive and convenient operation experience.AWD-EFP410 Automatic Abel Closed Cup Flash Point Tester’s touch screen is complemented by a mouse and disk, ensuring smooth navigation through the AWD-EFP410 Automatic Abel Closed Cup Flash Point Tester’s various functions. This high-resolution display allows for clear visualization of test data, parameters, and results, making AWD-EFP410 Automatic Abel Closed Cup Flash Point Tester easy to monitor and analyze the testing process.

Versatile Ignition Methods and High-Quality Components

 AWD-EFP410 Automatic Abel Closed Cup Flash Point Tester offers dual ignition methods—electronic ignition and gas ignition—allowing users to choose the method that best suits their testing requirements. Both ignition methods provide consistent and reliable test results, ensuring accuracy and repeatability. Furthermore, AWD-EFP410 Automatic Abel Closed Cup Flash Point Tester features gold-plated oil cups and lids, which not only enhance the aesthetic appeal but also offer superior temperature resistance and ease of maintenance. The separate and independent design of the lid components, flash point sensor, and temperature sensor makes AWD-EFP410 Automatic Abel Closed Cup Flash Point Tester easy to replace accessories, with a plug-and-play functionality that minimizes downtime.

Imported Key Components for Reliability

 To ensure the highest level of performance and reliability, AWD-EFP410 Automatic Abel Closed Cup Flash Point Tester incorporates key components sourced from reputable international suppliers. The temperature sensor is imported from Germany, providing highly reliable and stable detection capabilities with precise data accuracy. The AWD-EFP410 Automatic Flash Point Instrument Abel Flash Point Apparatus's internal stirring drive and other critical mechanical structures are sourced from Japan, ensuring long-term durability and consistent operation.

Self-Examination and Self-Diagnosis for Enhanced Safety

AWD-EFP410 Automatic Flash Point Instrument Abel Flash Point Apparatus is designed with safety and reliability in mind. Upon startup, the instrument performs a comprehensive self-examination and self-diagnosis of critical components, including the flash point sensor, Pt100 oil temperature sensor, electronic igniter, and system thermal fuse. The AWD-EFP410 Automatic Flash Point Instrument Abel Flash Point Apparatus's ignition action, stirring arm movement, and cooling and heating systems are also checked for proper function. If any faults or abnormal connections are detected, the AWD-EFP410 Automatic Flash Point Instrument Abel Flash Point Apparatus will sound an alarm and display a text prompt on the screen, guiding users to address the issue promptly.

Intuitive and Real-Time Testing Process

AWD-EFP410 Automatic Flash Point Instrument Abel Flash Point Apparatus provides a highly intuitive testing process, with real-time display of heating rates in both graphical and chart curve formats. The AWD-EFP410 Automatic Flash Point Instrument Abel Flash Point Apparatus's heating rate is fully compliant with the standard requirement of 1°C/min, ensuring accurate and repeatable test results. AWD-EFP410 Automatic Flash Point Instrument Abel Flash Point Apparatus also features an overheating protection mechanism, which issues an acousto-optic alarm if the pre-safety temperature (safety alarm temperature) is exceeded. However, the test can continue until the safety temperature (test stop temperature) or absolute safety temperature (400°C) is reached. At this point, AWD-EFP410 Automatic Flash Point Instrument Abel Flash Point Apparatus's test is halted, and the cooling fan is activated to prevent potential fire hazards.

Comprehensive Data Storage and Query Function

AWD-EFP410 Automatic Flash Point Instrument Abel Flash Point Apparatus boasts a powerful data storage and query function, capable of storing tens of thousands of test results. Users can easily retrieve and analyze data based on various criteria, such as time, oil sample type, and test parameters. AWD-EFP410 Automatic Flash Point Instrument Abel Flash Point Apparatus's feature ensures that historical data is readily available for review and comparison, facilitating comprehensive quality control and research applications.

Conclusion

AWD-EFP410 Automatic Flash Point Instrument Abel Flash Point Apparatus is a cutting-edge solution for flash point determination, offering a combination of advanced technology, user-friendly design, and compliance with international standards. Its dual control system, versatile ignition methods, high-quality components, and comprehensive data management capabilities make the AWD-EFP410 Automatic Flash Point Instrument Abel Flash Point Apparatus as an ideal choice for laboratories and industries that require precise and reliable flash point testing. Whether you are conducting routine quality control tests or performing complex research, the Automatic Flash Point Instrument Abel Flash Point Apparatus is designed to meet your needs with precision and ease.

For more information on how the AWD-EFP410 Automatic Flash Point Instrument Abel Flash Point Apparatus can enhance your testing capabilities, please contact us today. We are committed to providing you with the highest level of support and service to ensure that your flash point testing processes are both safe and efficient.

    Main Technical Parameters of AWD-EFP410 Automatic Abel Closed Flash Point Tester

 Standard Accessories of AWD-EFP410 Automatic Abel Closed Flash Point Tester
